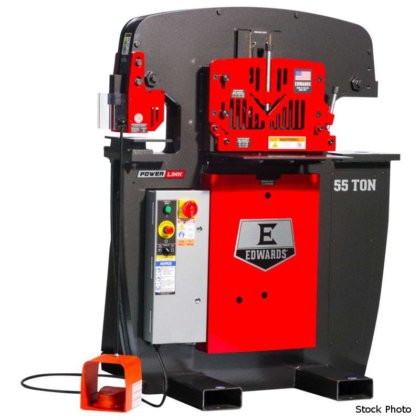

EDWARDS IW55-3P230 JAWS IV 55
Location:
Dodge Center, MN, USA
Manufacturer:
Edwards
Model:
IW55-3P230 JAWS IV 55 TON

Specifications

Condition:
new
Stock number:
061211
Subcategory:
Ironworkers

Description

EDWARDS (NEW) MODEL IW55-3P230 JAWS IV 50 TON
IRONWORKER WITH 4 STATIONS
PUNCH:
MAX CAPACITY ..... 1-1/16" DIA IN 5/8" PLATE
WORK HEIGHT ...... 37-1/2"
FLAT BAR SHEAR:
MAXIMUM WIDTH .... 1/2" X 12" OR 3/8" X 14"
MAXIMUM THICKNESS 3/4" X 4"
MAXIMUM ROUND .... 7/8"
MAXIMUM SQUARE ... 7/8"
WORK HEIGHT ...... 34-3/4"
ANGLE SHEAR:
MAXIMUM SIZE ..... 4" X 4" X 1/4"
OR ............... 3" X 3" X 3/8"
WORK HEIGHT ...... 40"
OPEN STATION:
THROAT DEPTH ..... 7"
OPEN HEIGHT ...... 8"
SHUT HEIGHT ...... 6-3/4"
STROKE ........... 1-1/4"
WORK HEIGHT ...... 35-1/4"
GENERAL SPECIFICATONS:
RATED CAPACITY ... 55 TON
THROAT DEPTH ..... 7-1/2"
OPEN HEIGHT ...... 8"
SHUT HEIGHT ...... 6-3/4"
STROKE ........... 1-1/4"
CYCLE TIME ....... 2 SECONDS
ELECTRIC MOTOR ... 5 HP, 3 PHASE
VOLTS ............ 230 VOLT
RPM .............. 1725 RPM
AMP .............. 14 AMP
HYDRAULIC PUMP ... 3-1/2 GPM - 1 STAGE
VALVE PRESSURE ... 2,600 PSI
RESERVOIR ........ 7 GALLONS
CYLINDER ......... 2-1/2" RAM
