Top Seller
EDWARDS IRONWORKERS in Dodge Center,
Location:
Dodge Center, MN
Price:
$10,696 USD
Manufacturer:
Edwards
Model:
JAWS IV 60 TON
Capacity:
60 TON

Specifications

Condition:
new
Stock number:
061395
Or:
3/8" X 14"
Amp:
14 AMP
Rpm:
1725 RPM
Or 2:
3" X 3" X 1/2"
Volts:
208/240 VOLT
Stroke:
1-1/4"
Cylinder:
2-1/2" RAM
Reservoir:
7 GALLONS
Cycle time:
2 SECONDS
Open height:
8"
Shut height:
6-3/4"
Work height:
37-1/2"
Maximum size:
4" X 4" X 3/8"
Throat depth:
7-1/2"
Maximum round:
7/8"
Maximum width:
1/2" X 12"
Work height 2:
34-3/4"
Work height 3:
40"
Work height 4:
40-3/8"
Electric motor:
5 HP, 3 PHASE
Maximum square:
7/8"
Rated capacity:
60 TON
Valve pressure:
2,800 PSI
Maximum width 2:
2-1/2" X 5" X 1/4"
Maximum thickness:
3/4" X 4"
Optional accessories:
PRICE ON REQUEST
Electric motor options:
PRICE ON REQUEST
Subcategory:
Ironworkers

Description

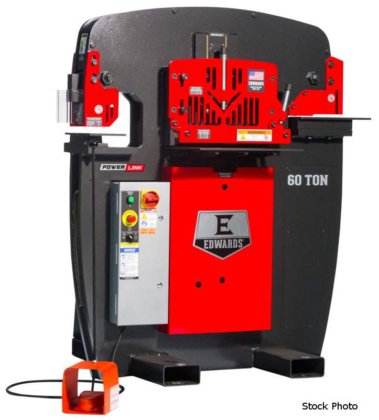

EDWARDS (NEW) MODEL JAWS IV 60 TON IRONWORKER
4 STATIONS
PUNCH:
MAX CAPACITY IN 3/4" PLATE . 1" DIA.
WORK HEIGHT ................ 37-1/2"
FLAT BAR SHEAR:
MAXIMUM WIDTH .............. 1/2" X 12"
OR ....................... 3/8" X 14"
MAXIMUM THICKNESS .......... 3/4" X 4"
MAXIMUM ROUND .............. 7/8"
MAXIMUM SQUARE ............. 7/8"
WORK HEIGHT ................ 34-3/4"
ANGLE SHEAR:
MAXIMUM SIZE ............... 4" X 4" X 3/8"
OR ........................ 3" X 3" X 1/2"
WORK HEIGHT ................ 40"
COPER/NOTCHER:
MAXIMUM WIDTH ....... 2-1/2" X 5" X 1/4"
MAXIMUM THICKNESS ... 2-1/2" X 4" X 3/8"
WORK HEIGHT ................ 40-3/8"
GENERAL SPECIFICATONS:
RATED CAPACITY ............. 60 TON
THROAT DEPTH ............... 7-1/2"
OPEN HEIGHT ................ 8"
SHUT HEIGHT ................ 6-3/4"
STROKE ..................... 1-1/4"
CYCLE TIME ................. 2 SECONDS
ELECTRIC MOTOR ............. 5 HP, 3 PHASE
VOLTS ...................... 208/240 VOLT
RPM ........................ 1725 RPM
AMP ........................ 14 AMP
HYDRAULIC PUMP SIZE .. 3-1/2 GPM - 1 STAGE
VALVE PRESSURE ............. 2,800 PSI
RESERVOIR .................. 7 GALLONS
CYLINDER ................... 2-1/2" RAM
STANDARD FEATURES:
COPER/NOTCHER
ELECTRIC STROKE CONTROL
ELECTRIC FOOT PEDAL
PEDESTAL DIE TABLE
AUXILIARY M12 POWER PORT
ELECTRIC MOTOR OPTIONS ..... PRICE ON REQUEST
5 HP, 3 PH, 440/480 VOLT OR 575 VOLT, 7 AMP
5 HP, 1 PH, 208/240 VOLT, 1725 RPM, 26 AMP
OPTIONAL ACCESSORIES ....... PRICE ON REQUEST
HYDRAULIC ACCESSORY PACKAGE ............ POR
ACCESSORY LIGHT ........................ POR
AUTO CUT ............................... POR
ANGLE NOTCHER 3" X 3" X 1/4" ........... POR
BRAKE W/4-WAY DIE 1/16" 1/8" 3/16" 1/4" POR
MULTI SHEAR ............................ POR
PIPE NOTCHER HOUSING ................... POR
QUICK CHANGE PUNCH COUPLING ............ POR
ROD SHEAR & HOUSING
1/4", 3/8", 1/2", 5/8", 3/4", 1" ...... POR
