EDWARDS IRONWORKERS in Dodge Center,
Location:
Dodge Center, MN
Price:
$15,996 USD
Manufacturer:
Edwards
Model:
JAWS IV 75 TON
Capacity:
75 TON

Specifications

Condition:
new
Stock number:
060009
Amp:
14 AMP
Rpm:
1725 RPM
Volts:
208/240 VOLT
Stroke:
1-7/8"
Cylinder:
3-1/2" RAM
Reservoir:
17 GALLONS
Open height:
8-3/4"
Shut height:
6-7/8"
Work height:
41-1/2"
Maximum size:
5" X 5" X 3/8"
Throat depth:
10"
Maximum round:
1"
Maximum width:
1/2" X 14"
Work height 2:
49"
Work height 3:
43-1/2"
Electric motor:
5 HP, 3 PHASE
Maximum square:
1"
Rated capacity:
75 TON
Valve pressure:
2,800 PSI
Maximum capacity:
2.5" X 5" X .5"
Maximum thickness:
3/4" X 10"
Optional accessories:
PRICE ON REQUEST
Electric motor options:
PRICE ON REQUEST
Subcategory:
Ironworkers

Description

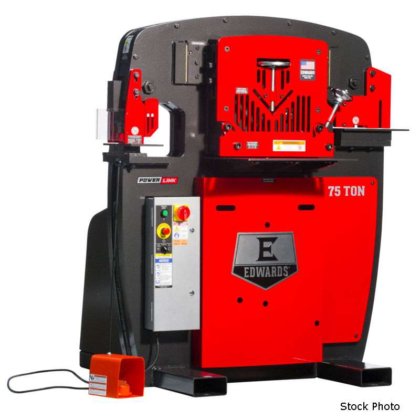

EDWARDS (NEW) MODEL JAWS IV 75 TON IRONWORKER
4 STATIONS
PUNCH:
MAX CAPACITY IN 7/8" PLATE 1-1/16" DIA.
WORK HEIGHT ............... 41-1/2"
FLAT BAR SHEAR:
MAXIMUM WIDTH ............. 1/2" X 14"
MAXIMUM THICKNESS ......... 3/4" X 10"
MAXIMUM ROUND ............. 1"
MAXIMUM SQUARE ............ 1"
WORK HEIGHT ............... 41-1/2"
ANGLE SHEAR:
MAXIMUM SIZE .............. 5" X 5" X 3/8"
WORK HEIGHT ............... 49"
OPEN STATION:
MAXIMUM CAPACITY .......... 2.5" X 5" X .5"
WORK HEIGHT ............... 43-1/2"
GENERAL SPECIFICATONS:
RATED CAPACITY ............ 75 TON
THROAT DEPTH .............. 10"
OPEN HEIGHT ............... 8-3/4"
SHUT HEIGHT ............... 6-7/8"
STROKE .................... 1-7/8"
ELECTRIC MOTOR ............ 5 HP, 3 PHASE
VOLTS ..................... 208/240 VOLT
RPM ....................... 1725 RPM
AMP ....................... 14 AMP
HYDRAULIC PUMP SIZE . 10-1/2 GPM - 2 STAGE
VALVE PRESSURE ............ 2,800 PSI
RESERVOIR ................. 17 GALLONS
CYLINDER .................. 3-1/2" RAM
STANDARD FEATURES:
COPER/NOTCHER
ELECTRIC STROKE CONTROL
ELECTRIC FOOT PEDAL
PEDESTAL DIE TABLE
AUXILIARY M12 POWER PORT
ELECTRIC MOTOR OPTIONS ..... PRICE ON REQUEST
5 HP, 3 PH, 440/480 VOLT, 1725 RPM, 26 AMP
OPTIONAL ACCESSORIES ....... PRICE ON REQUEST
HYDRAULIC ACCESSORY PACKAGE ............ POR
ACCESSORY LIGHT ........................ POR
AUTO CUT ............................... POR
ANGLE NOTCHER 3" X 3" X 1/4" ........... POR
BRAKE W/4-WAY DIE 1/16" 1/8" 3/16" 1/4" POR
MULTI SHEAR ............................ POR
PIPE NOTCHER HOUSING ................... POR
QUICK CHANGE PUNCH COUPLING ............ POR
ROD SHEAR & HOUSING
1/4", 3/8", 1/2", 5/8", 3/4", 1" ...... POR
