Top Seller
EDWARDS IRONWORKERS in Dodge Center,
Location:
Dodge Center, MN
Price:
$5,296 USD
Manufacturer:
Edwards
Model:
JAWS JR 25 TON
Capacity:
25 TON

Specifications

Condition:
new
Stock number:
060027
Amp:
7 AMP
Rpm:
1725 RPM
Volts:
208/220 VOLTS
Stroke:
1"
Cylinder:
1-3/4" RAM
Reservoir:
3 GALLONS
Open height:
8"
Shut height:
7"
Work height:
38-1/2"
Throat depth:
5"
Open height 2:
6"
Shut height 2:
5"
Work height 2:
35-3/4"
Electric motor:
1 HP, 1 PHASE
Rated capacity:
25 TON
Throat depth 2:
5-1/2"
Valve pressure:
2200 PSI
Optional accessories:
PRICE ON REQUEST
Subcategory:
Ironworkers

Description

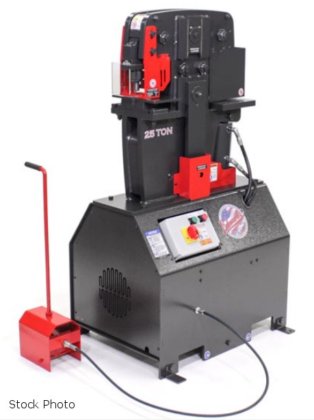

EDWARDS (NEW) JAWS JR 25 TON IRONWORKER
2 STATIONS
PUNCHING STATION:
MAXIMUM CAPACITY .... 1" DIA. IN 5/16" PLATE
WORK HEIGHT ......... 38-1/2"
OPEN STATION SPECIFICATIONS:
THROAT DEPTH ........ 5"
OPEN HEIGHT ......... 8"
SHUT HEIGHT ......... 7"
STROKE .............. 1"
WORK HEIGHT ......... 35-3/4"
GENERAL SPECS:
RATED CAPACITY ...... 25 TON
THROAT DEPTH ........ 5-1/2"
OPEN HEIGHT ......... 6"
SHUT HEIGHT ......... 5"
STROKE .............. 1"
ELECTRIC MOTOR ...... 1 HP, 1 PHASE
VOLTS ............... 208/220 VOLTS
RPM ................. 1725 RPM
AMP ................. 7 AMP
HYDRAULIC PUMP SIZE . 11 GPM - 2 STAGE
VALVE PRESSURE ...... 2200 PSI
RESERVOIR ........... 3 GALLONS
CYLINDER ............ 1-3/4" RAM
STANDARD FEATURES:
ELECTRIC STROKE CONTROL
ELECTRIC FOOT PEDAL
PEDESTAL DIE TABLE
AUXILIARY M12 POWER PORT
ELEC MOTOR OPTIONS .. 110 VOLT, 14 AMP
OPTIONAL ACCESSORIES ....... PRICE ON REQUEST
ANGLE NOTCHER 3" X 3" X 1/4" ........... POR
BRAKE W/4-WAY DIE 1/16" 1/8" 3/16" 1/4" POR
COPER/NOTCHER .......................... POR
MULTI SHEAR ............................ POR
PIPE NOTCHER HOUSING ................... POR
QUICK CHANGE PUNCH COUPLING ............ POR
ROD SHEAR AND HOUSING
1/4", 3/8", 1/2", 5/8", 3/4", 1" ..... POR
