Top Seller
EDWARDS IRONWORKERS in Dodge Center,
Location:
Dodge Center, MN
Price:
$16,996 USD
Manufacturer:
Edwards
Model:
JAWS V 65 TON
Capacity:
65 TON

Specifications

Condition:
new
Stock number:
060619
Or:
1" X 4"
Amp:
14 AMP
Rpm:
1725 RPM
Or 2:
4" X 4" X 3/8"
Volts:
208/240 VOLT
Stroke:
1-3/8"
Cylinder:
3-1/2" RAM
Reservoir:
17 GALLONS
Cycle time:
2 SECONDS
Open height:
8-1/8"
Shut height:
6-3/4"
Work height:
36"
Maximum size:
5" X 5" X 1/4"
Throat depth:
9-3/4"
Maximum round:
1"
Maximum width:
3/8" X 24"
Work height 2:
33-1/2"
Work height 3:
42"
Work height 4:
35-1/2"
Electric motor:
5 HP, 3 PHASE
Maximum square:
1"
Rated capacity:
65 TON
Valve pressure:
2,800 PSI
Maximum capacity:
2-1/2" X 6" X 3/8"
Maximum thickness:
1/2" X 14"
Hydraulic pump size:
10-1/2 GPM-2 STAGE
Optional accessories:
PRICE ON REQUEST
Electric motor options:
PRICE ON REQUEST
Subcategory:
Ironworkers

Description

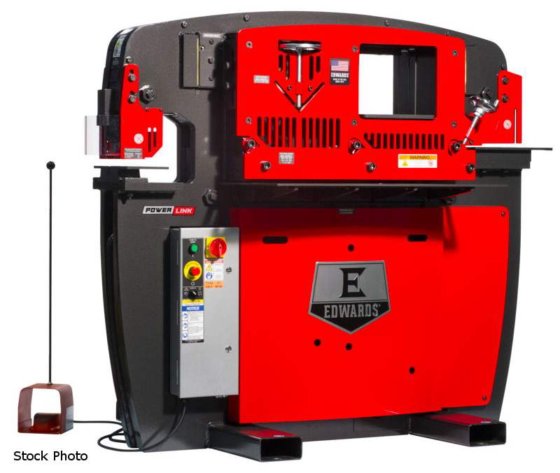

EDWARDS (NEW) MODEL JAWS V 65 TON IRONWORKER
5 STATIONS
PUNCH:
MAX CAPACITY-3/4" PLATE . 1-1/16" DIA.
WORK HEIGHT ............. 36"
FLAT BAR SHEAR:
MAXIMUM WIDTH ........... 3/8" X 24"
MAXIMUM THICKNESS ....... 1/2" X 14"
OR .................... 1" X 4"
MAXIMUM ROUND ........... 1"
MAXIMUM SQUARE .......... 1"
WORK HEIGHT ............. 33-1/2"
ANGLE SHEAR:
MAXIMUM SIZE ............ 5" X 5" X 1/4"
OR .................... 4" X 4" X 3/8"
WORK HEIGHT ............. 42"
COPER/NOTCHER:
MAXIMUM CAPACITY ........ 2-1/2" X 6" X 3/8"
WORK HEIGHT ............. 35-1/2"
OPEN CAVITY:
SPECS (WIDTH X HEIGHT) .. 11-1/2" X 9-3/4"
WORK HEIGHT ............. 42"
GENERAL SPECIFICATONS:
RATED CAPACITY .......... 65 TON
THROAT DEPTH ............ 9-3/4"
OPEN HEIGHT ............. 8-1/8"
SHUT HEIGHT ............. 6-3/4"
STROKE .................. 1-3/8"
CYCLE TIME .............. 2 SECONDS
ELECTRIC MOTOR .......... 5 HP, 3 PHASE
VOLTS ................... 208/240 VOLT
RPM ..................... 1725 RPM
AMP ..................... 14 AMP
HYDRAULIC PUMP SIZE ..... 10-1/2 GPM-2 STAGE
VALVE PRESSURE .......... 2,800 PSI
RESERVOIR ............... 17 GALLONS
CYLINDER ................ 3-1/2" RAM
STANDARD FEATURES:
COPER/NOTCHER
ELECTRIC STROKE CONTROL
ELECTRIC FOOT PEDAL
PEDESTAL DIE TABLE
AUXILIARY M12 POWER PORT
ELECTRIC MOTOR OPTIONS ..... PRICE ON REQUEST
5 HP, 3 PH, 440/480 VOLT OR 575 VOLT, 7 AM
5 HP, 1 PH, 208/240 VOLT, 1725 RPM, 26 AMP
OPTIONAL ACCESSORIES ....... PRICE ON REQUEST
HYDRAULIC ACCESSORY PACKAGE ............ POR
ACCESSORY LIGHT ........................ POR
AUTO CUT ............................... POR
ANGLE NOTCHER 3" X 3" X 1/4" ........... POR
BRAKE W/4-WAY DIE 1/16" 1/8" 3/16" 1/4" POR
MULTI SHEAR ............................ POR
PIPE NOTCHER HOUSING ................... POR
QUICK CHANGE PUNCH COUPLING ............ POR
ROD SHEAR & HOUSING
1/4", 3/8", 1/2", 5/8", 3/4", 1" ...... POR
