BYSTRONIC LASERS in Dodge Center,
Location:
Dodge Center, MN
Manufacturer:
Bystronic
Model:
BYAUTONOM 3015 W/6000 W
Weight:
1980 LBS

Specifications

Condition:
new
Stock number:
061739
Power:
6000 WATT
Aluminum:
0.600"
Mild steel:
1.000"
Wavelength:
10.6
Disk drives:
DVD-RW, USB 2
Cutting area:
120" .. 60" .. 3.2"
Polarization:
CIRCULAR
Simultaneous:
6650"/MIN
Cutting heads:
5" 7.5" 9"
Pulse frequency:
1-2500 HZ
Stainless steel:
1.000"
Parallel axis x, y:
4700"/MIN
Electrical consumption:
78 KW
Deviation of one axis m:
0.004"
Edge detection accuracy:
+/- 0.020"
Maximum workpiece weight:
1980 LBS
Maximum axis acceleration:
1180"/S2
Subcategory:
Lasers

Description

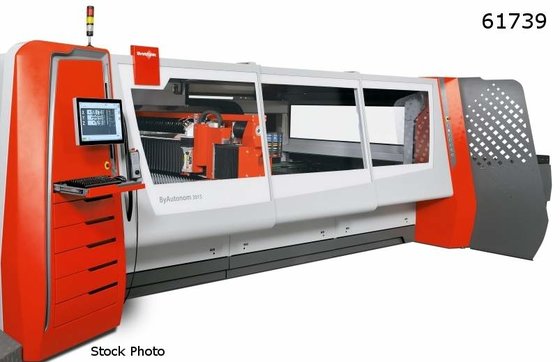

BYSTRONIC (NEW) BYAUTONOM 3015 WITH BYLASER
6000 CUTTING SYSTEM
AXIS .................. X ..... Y ..... Z
NOMINAL SHEET SIZE ... 120" .. 60"
CUTTING AREA ......... 120" .. 60" .. 3.2"
MAXIMUM POSITIONING SPEED:
PARALLEL AXIS X, Y .......... 4700"/MIN
SIMULTANEOUS ................ 6650"/MIN
MAXIMUM AXIS ACCELERATION ..... 1180"/S2
AVERAGED, BILATERAL POSITION
DEVIATION OF ONE AXIS M ..... 0.004"
BILATERAL REPEATABILITY OF
POSITIONING OF ONE AXIS R ... 0.002"
EDGE DETECTION ACCURACY ....... +/- 0.020"
MAXIMUM WORKPIECE WEIGHT ...... 1980 LBS
CUTTING HEADS ................. 5" 7.5" 9"
DISK DRIVES ................... DVD-RW, USB 2
NETWORK - RJ45 CONNECTION TO 10/100 MBIT/S
OPERATION VIA PANEL WITH 21" TOUCH SCREEN,
KEYBOARD AND MANUAL CONTROL UNIT
BASE- REINFORCED INDUSTRIAL FLOOR
BYLASER 4400:
POWER ....................... 6000 WATT
WAVELENGTH .................. 10.6
POLARIZATION ................ CIRCULAR
PULSE FREQUENCY ............. 1-2500 HZ
MAXIMUM SHEET THICKNESS:
MILD STEEL .................. 1.000"
STAINLESS STEEL ............. 1.000"
ALUMINUM .................... 0.600"
ELECTRICAL CONSUMPTION ........ 78 KW
TO SEE A VIDEO OF THIS MACHINE, CLICK ON:
