BYSTRONIC LASERS in Dodge Center,
Location:
Dodge Center, MN
Manufacturer:
Bystronic
Model:
BYSPRINT FIBER 3015
Weight:
1650 LBS

Specifications

Condition:
new
Stock number:
061798
Brass:
0.160"
Power:
6000 W
Copper:
0.120"
Drives:
DVD-RW USB 2
Aluminum:
0.300"
Mild steel:
0.500"
Wavelength:
1070 NM
Cutting area:
X=120" Y=60" Z=2.75"
Simultaneous:
5500"/MIN
Pulse frequency:
1-2500 HZ
Stainless steel:
0.250"
Repeatability ps:
+/- 0.002"
Nominal sheet size:
120" X 60"
Parallel axis x, y:
3937"/MIN
Edge detection accuracy:
+/- 0.020"
Positioning accuracy pa:
+/- 0.004"
Maximum workpiece weight:
1650 LBS
Subcategory:
Lasers

Description

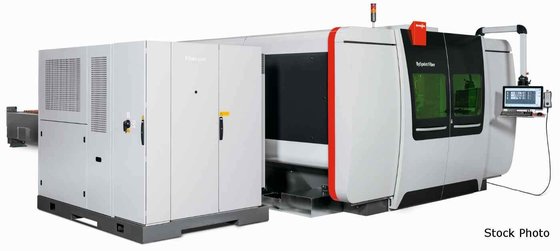

BYSTRONIC (NEW) MODEL BYSPRINT FIBER 3015
WITH FIBER 6000 LASER SOURCE
NOMINAL SHEET SIZE ........... 120" X 60"
CUTTING AREA ......... X=120" Y=60" Z=2.75"
MAXIMUM POSITIONING SPEED:
- PARALLEL AXIS X, Y ......... 3937"/MIN
- SIMULTANEOUS ............... 5500"/MIN
MAXIMUM AXIS ACCELERATION .... 472"/S2
POSITIONING ACCURACY PA ...... +/- 0.004"
REPEATABILITY PS ............. +/- 0.002"
EDGE DETECTION ACCURACY ...... +/- 0.020"
MAXIMUM WORKPIECE WEIGHT ..... 1650 LBS
DRIVES ....................... DVD-RW USB 2
NETWORK - RJ45 CONNECTION TO 10/100 MBIT/S
OPERATION VIA PANEL WITH 15" TOUCH SCREEN,
KEYBOARD AND MANUAL CONTROL UNIT
BASE - REINFORCED INDUSTRIAL FLOOR
FIBER 6000 LASER SOURCE:
- POWER ..................... 6000 W
- WAVELENGTH ................ 1070 NM
- PULSE FREQUENCY ........... 1-2500 HZ
MAXIMUM SHEET THICKNESS:
- MILD STEEL ................ 0.500"
- STAINLESS STEEL ........... 0.250"
- ALUMINUM .................. 0.300"
- BRASS ..................... 0.160"
- COPPER .................... 0.120"
MAXIMUM ELECTRIC CONSUMPTION 16 KW
UNRIVALLED PRODUCTIVITY FOR LIGHT-GAUGE PARTS
THANKS TO INNOVATIVE FIBER-LASER TECHNOLOGY
STATE-OF-THE-ART FIBER LASER IS COMBINED WITH
SOPHISTICATED MACHINE ENGINEERING
ECONOMIC AND ECO-FRIENDLY THANKS TO BEST-EVER
ENERGY EFFICIENCY,UNPARALLELED PRODUCTIVITY
AND TROUBLE-FREE OPERATION
