ACCORD LATHES in Dodge Center,
Location:
Dodge Center, MN
Price:
$16,500 USD
Manufacturer:
Accord lathes
Model:
AYL-2280 GH
Spindle Bore:
3-1/8"
Distance between Centers:
80"

Specifications

Condition:
new
Stock number:
061897
Coolant:
1/8 HP
Bed width:
13-3/4"
Quill taper:
MT#5
Speed range:
25 120 525
Quill travel:
7"
Spindle bore:
3-1/8"
Spindle nose:
D1-8
Swing in gap:
31"
Center height:
11"
Length of gap:
6"
Quill diameter:
3"
Swing over bed:
22"
Leadscrew pitch:
1-5/8" X 4 TPI
Taper of spindle:
MT #5
Inch threads (60):
2 - 112 TPI
Maximum tool size:
1" X 1"
Optional equipment:
PRICE ON REQUEST
Metric threads (47):
0.2 - 14 MM
Modular pitch range:
0.1 - 7 MM
Spindle speed steps:
12
Cross feed range (35):
0.00048" -
Longitudinal feeds (35):
0.0022" -
Maximum compound travel:
5-1/8"
Distance between centers:
80"
Maximum cross slide travel:
12-15/16"
Subcategory:
Engine

Description

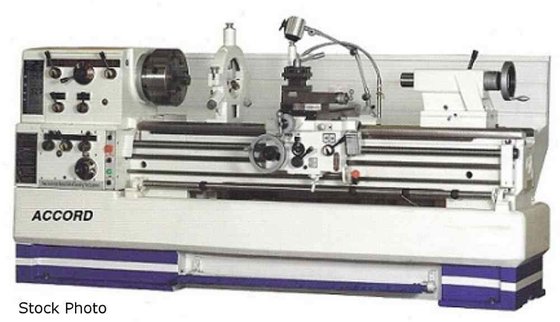

ACCORD (NEW) MODEL AYL-2280 GH HIGH SPEED
PRECISION GAP BED LATHE
CAPACITY:
SWING OVER BED ................. 22"
DISTANCE BETWEEN CENTERS ....... 80"
MAXIMUM SWING OVER CROSS SLIDE . 13-3/4"
BED WIDTH ...................... 13-3/4"
SWING IN GAP ................... 31"
LENGTH OF GAP .................. 6"
CENTER HEIGHT .................. 11"
MAXIMUM TOOL SIZE .............. 1" X 1"
MAXIMUM CROSS SLIDE TRAVEL ..... 12-15/16"
MAXIMUM COMPOUND TRAVEL ........ 5-1/8"
HEADSTOCK:
SPINDLE NOSE ................... D1-8
SPINDLE BORE ................... 3-1/8"
TAPER OF SPINDLE ............... MT #5
SPINDLE SPEED STEPS ............ 12
SPEED RANGE ...... 25 120 525
35 170 700
55 235 1100
80 350 1600
FEEDS AND THREADS:
LEADSCREW PITCH ............ 1-5/8" X 4 TPI
INCH THREADS (60) ........... 2 - 112 TPI
METRIC THREADS (47) ......... 0.2 - 14 MM
DIAMETRICAL PITCH RANGE (50). 4 - 112 DP
MODULAR PITCH RANGE ......... 0.1 - 7 MM
CROSS FEED RANGE (35) ....... 0.00048" -
0.01345" REV
LONGITUDINAL FEEDS (35) ..... 0.0022" -
0.0612" REV
TAIL STOCK:
QUILL TRAVEL ................ 7"
QUILL DIAMETER .............. 3"
QUILL TAPER ................. MT#5
MOTORS:
MAIN - 220/440 V, 60 HZ .... 10 HP 3 PHASE
COOLANT ..................... 1/8 HP
STANDARD EQUIPMENT:
18" FACE PLATE
12" 3 JAW CHUCK
16" 4 JAW CHUCK
TAPER ATTACHMENT
STEADY REST WITH 6-1/2" ROLLER
FOLLOW REST
10" DRIVE PLATE
COOLANT SYSTEM
HALOGEN WORK LIGHT
4 WAY TOOL POST
4 POSITION AUTOMATIC KICK OUT
LUBRICATING DEVICE
THREADING DIAL
MT#7 SLEEVE TO MT#5
2 DEAD CENTERS
LONGITUDINAL CARRIAGE STOP
FOOT BRAKE
SPLASH GUARD
SETUP WRENCHES
OPERATIONS MANUAL
FEATURES:
1-PC INDUCTION HARDENED & PREC. GROUND BED
HARDENED & PRECISION GROUND GEARS & SHAFTS
3 BEARING MAIN SPINDLE
UNIVERSAL QUICK-CHANGE GEAR BOX
NO CHANGE GEARS REQUIRED
OPTIONAL EQUIPMENT ......... PRICE ON REQUEST
QUICK CHANGE TOOL POST ........ POR
