Top Seller
JET LATHES in Dodge Center,
Location:
Dodge Center, MN
Price:
$15,499 USD
Manufacturer:
JET
Model:
321910 GH-1440ZX
Spindle Bore:
3-1/8"

Specifications

Condition:
new
Stock number:
061883
Volts:
230/460 V
Prewired:
230 V
Main motor:
7-1/2 HP 3 PH
Spindle bore:
3-1/8"
Width of bed:
13-3/8"
Length of gap:
12"
Max tool size:
1" X 1"
Spindle mount:
D1-8
Swing over bed:
14"
Carriage travel:
36-9/16"
Swing through gap:
18"
Cross slide travel:
9"
Follow rest capacity:
1/2" TO 3-1/2"
Range of cross feeds:
0006-.0365 IPR
Steady rest capacity:
3/8" TO 7"
Compound slide travel:
5-1/8"
Range of inch threads:
1-5/8"-72" TPI
Number of inch threads:
61
Swing over cross slide:
7-5/8"
Range of metric threads:
05 TO 20
Range of spindle speeds:
42 - 1,800 RPM
Subcategory:
Engine

Description

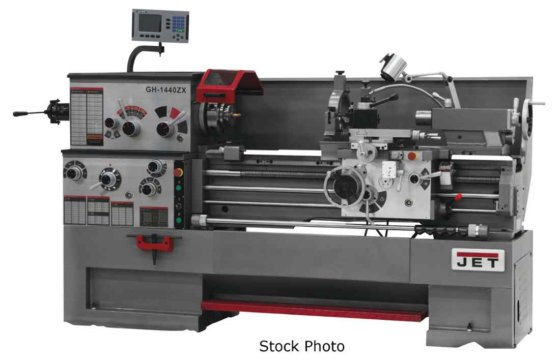

JET (NEW) MODEL 321910 GH-1440ZX LARGE
SPINDLE BORE LATHE
SWING OVER BED .............. 14"
SWING OVER CROSS SLIDE ...... 7-5/8"
SWING THROUGH GAP ........... 18"
LENGTH OF GAP ............... 12"
DISTANCE BETWEEN CENTERS .... 40"
SPINDLE BORE ................ 3-1/8"
SPINDLE MOUNT ............... D1-8
SPINDLE TAPER WITHOUT SLEEVE MT-7
SPINDLE TAPER WITH SLEEVE ... MT-5
NUMBER OF SPINDLE SPEEDS .... 12
RANGE OF SPINDLE SPEEDS ..... 42 - 1,800 RPM
LONGITUDINAL & CROSS FEEDS .. 122
RANGE OF LONGITUDINAL FEEDS . .0015-.0913 IPR
RANGE OF CROSS FEEDS ........ .0006-.0365 IPR
NUMBER OF INCH THREADS ...... 61
RANGE OF INCH THREADS ....... 1-5/8"-72" TPI
NUMBER OF METRIC THREADS .... 24
RANGE OF METRIC THREADS ..... .05 TO 20
MAX TOOL SIZE ............... 1" X 1"
COMPOUND SLIDE TRAVEL ....... 5-1/8"
CROSS SLIDE TRAVEL .......... 9"
CARRIAGE TRAVEL ............. 36-9/16"
TAILSTOCK SPINDLE TRAVEL .... 5"
TAPER IN TAILSTOCK SPINDLE .. MT-4
FOLLOW REST CAPACITY ........ 1/2" TO 3-1/2"
STEADY REST CAPACITY ........ 3/8" TO 7"
WIDTH OF BED ................ 13-3/8"
MAIN MOTOR .................. 7-1/2 HP 3 PH
VOLTS ....................... 230/460 V
PREWIRED .................... 230 V
STANDARD EQUIPMENT:
10" 3-JAW SCROLL CHUCK W/TOP REVERSING JAWS
12" 4-JAW INDEPENDENT CHUCK
4-WAY TOOL POST
FOLLOW REST
LARGE CAPACITY STEADY REST
FULLY INTEGRATED COOLANT SYSTEM
FULL LENGTH SPLASH GUARD AND COOLANT RETURN
CHUCK GUARD
ARTICULATING HALOGEN WORK LAMP
CENTRALLY LOCATED CONTROLS WITH JOG BUTTON
THREADING DIAL
MOUNTING PADS AND LEVELERS
SPINDLE SPEED (MT-7 TO MT-5)
LIVE CENTER
TOLERANCE TEST CERTIFICATE
TOOL BOX AND ADJUSTING TOOLS
FEATURES:
3-1/8" BORE SPINDLE IS SUPPORTED BY TWO
TAPERED AND ONE BALL BEARING
CHROME MOLYBDENUM HEADSTOCK GEARS ARE
HARDENED, GROUND AND SHAVED
UNIVERSAL GEARBOX ALLOWS INCH, METRIC,
DIAMETRAL & MODULE PITCH THREADS - NO
CHANGE GEARS REQUIRED
CARRIAGE FEATURES ONE SHOT LUBRICATION AND
TURCITE B ON BED SLIDING SURFACES
T-SLOTTED COMPOUND SLIDE FEATURING A 4-WAY
TOOL POST
1-PIECE CAST IRON BASE ABSORBS VIBRATION,
ALLOWING HEAVIER CUTS
HIGH QUALITY ANSI CLASS 50 WEAR-RESISTANT
CAST IRON BED WAYS ARE HARDENED & GROUND
FRONT REMOVABLE CHIP TRAY
LARGE EASY-TO-USE FOOT BRAKE
FIVE POSITION AUTOMATIC CARRIAGE STOP
CHROME CONTROL LEVERS, DIALS, AND KNOBS
