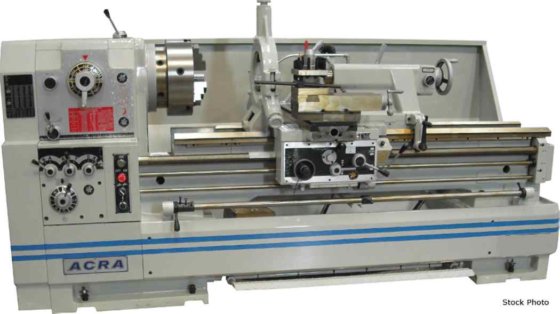

ACCORD (NEW) MODEL AYL-2260GH ENGINE LATHE
CAPACITY:
SWING OVER BED ............. 22"
SWING OVER CROSS SIDE ...... 13-3/4"
SWING IN GAP ............... 31"
LENGTH OF GAP .............. 6"
CENTER HEIGHT .............. 11"
DISTANCE BETWEEN CENTERS ... 60"
BED WIDTH .................. 13-3/4"
MAXIMUM TOOL SIZE .......... 1" X 1"
MAXIMUM CROSS SLIDE TRAVEL . 12-15/16"
MAXIMUM COMPOUND TRAVEL .... 5 1/8"
HEADSTOCK:
SPINDLE BORE ............... 3-1/8"
SPINDLE NOSE ............... D1-8
SPINDLE TAPER .............. MT #5
SPINDLE SPEED STEPS ........ 12
SPEED RANGE .... 25, 35, 55, 80, 120, 170,
........ 235, 350, 525, 700, 1100, 1600
FEEDS & THREADS:
LEADSCREW PITCH ............ 1-5/8" X 4 TPI
INCH THREADS (60) .......... 2 - 112 TPI
METRIC THREADS (47) ........ 0.2 - 14 MM
DIAMETRICAL PITCH (50) ..... 4 - 112 DP
MODULAR PITCH RANGE (39) ... 0.1 - 7 MM
CROSS FEED RANGE (35) 0.00048"-0.01345" REV
LONGITUDINAL FEEDS (35) 0.0022"-0.0612" REV
TAIL STOCK:
QUILL TRAVEL ............... 7"
QUILL DIAMETER ............. 3"
QUILL TAPER ................ MT #5
MOTOR:
MAIN MOTOR ..... 10 HP, 220/440/60 HZ, 3 PH
COOLANT MOTOR .............. 1/8 HP
FEATURES:
ONE PIECE INDUCTION
HARDENED/PRECISION GROUND BED/GEARS/SHAFTS
3 BEARING MAIN SPINDLE
UNIVERSAL QUICK CHANGE GEAR BOX
NO CHANGE GEARS REQUIRED
STANDARD EQUIPMENT:
12" 3-JAW CHUCK
16" 4-JAW CHUCK
4-WAY TOOL POST
4-POSITION AUTOMATIC KICK-OUT
LUBRICATING DEVICE
THREADING DIAL
MT #7 SLEEVE TO MT #5
FOOT BRAKE
HALOGEN WORK LIGHT
SPLASH GUARD
18" FACE PLATE
TAPER ATTACHMENT
COOLANT SYSTEM
6-1/2" STEADY REST ROLLER
FOLLOW REST
10" DRIVE PLATE
2 DEAD CENTERS
LONGITUDINAL CARRIAGE STOP
SETUP WRENCHES
OPERATION MANUAL
OPTIONAL EQUIPMENT ......... PRICE ON REQUEST
ISOLATION DAMPENING MOUNTS ....... POR
5C COLLET CLOSER ................. POR
12" STEADY REST .................. POR
JACOBS DRILL CHUCK ............... POR
QUICK CHANGE TOOLING SYSTEMS ..... POR
DIGITAL READOUT SYSTEM ........... POR
TOOL POST GRINDERS ............... POR
LIVE CENTER ...................... POR
