Top Seller
ACRA LATHES in Dodge Center,
Location:
Dodge Center, MN
Price:
$5,650 USD
Manufacturer:
Acra lathes
Model:
GH-1440A
Spindle Bore:
1-1/2"
Distance between Centers:
40"

Specifications

Condition:
new
Stock number:
061844
Bed width:
8-1/4"
Main motor:
3 HP, 220V, 3 PH, 2 SPEED
Quill taper:
MT #3
Quill travel:
4 3/4"
Spindle bore:
1-1/2"
Spindle nose:
D1-4
Swing in gap:
20"
Center height:
7"
Length of gap:
6-1/4"
Spindle taper:
MT #5
5c collet sets:
ROUND, SQ HEX .... POR
Quill diameter:
2 3/4"
Swing over bed:
14"
Leadscrew pitch:
7/8" 8 TPI
Inch threads (40):
4-112 TPI
Maximum tool size:
3/4" X 3/4"
Optional equipment:
PRICE ON REQUEST
Metric threads (22):
0.045-7.5MM
Spindle speed steps:
16
Swing over cross side:
8-5/8"
Maximum compound travel:
4"
Distance between centers:
40"
Subcategory:
Engine

Description

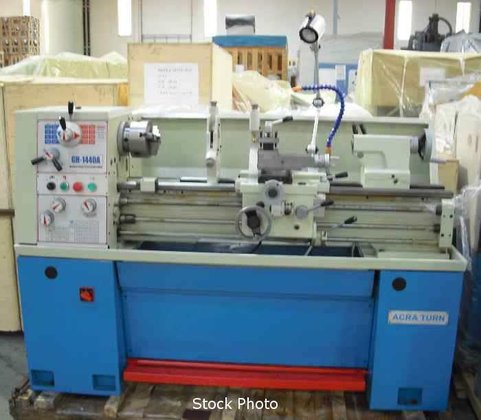

ACRA (NEW) MODEL GH-1440A ENGINE LATHE
CAPACITY:
- SWING OVER BED ................ 14"
- SWING OVER CROSS SIDE ......... 8-5/8"
- SWING IN GAP .................. 20"
- LENGTH OF GAP ................. 6-1/4"
- CENTER HEIGHT ................. 7"
- DISTANCE BETWEEN CENTERS ...... 40"
- BED WIDTH ..................... 8-1/4"
- MAXIMUM TOOL SIZE ............. 3/4" X 3/4"
- MAXIMUM CROSS SLIDE TRAVEL .... 7"
- MAXIMUM COMPOUND TRAVEL ....... 4"
HEADSTOCK:
- SPINDLE BORE .................. 1-1/2"
- SPINDLE NOSE .................. D1-4
- SPINDLE TAPER ................. MT #5
- SPINDLE SPEED STEPS ........... 16
- SPEED RANGE ... 45, 70, 90, 108, 140, 165,
............... 215, 255, 330, 385, 510,
............... 585, 770, 900, 1170, 1800
FEEDS & THREADS:
- LEADSCREW PITCH ............... 7/8" 8 TPI
- INCH THREADS (40) ............. 4-112 TPI
- METRIC THREADS (22) ........... 0.045-7.5MM
- CROSS FEED RANGE (40) .. 0.0003-0.0294" IPR
- LONGITUDINAL FEEDS (40). 0.0012-0.0294 IPR
TAIL STOCK:
- QUILL TRAVEL .................. 4 3/4"
- QUILL DIAMETER ................ 2 3/4"
- QUILL TAPER ................... MT #3
MOTOR:
- MAIN MOTOR ...... 3 HP, 220V, 3 PH, 2 SPEED
- COOLANT MOTOR ... 1/8 HP, 220V, 3 PHASE
FEATURES:
- BEARING SPINDLE DESIGN
- TOTALLY ENCLOSED GEAR BOX
- AUTOMATIC LONG & CROSS FEEDING
- MAIN SPINDLE HARDENED AND GROUND
- FINE-GRAIN, HIGH-TENSILE CAST IRON BED
- JOG BUTTON FOR EASY GEAR ENGAGEMENT
- EMERGENCY STOP BUTTON
STANDARD EQUIPMENT:
- DIGITAL READOUT
- 6" 3-JAW CHUCK
- 8" 4-JAW CHUCK
- 4-WAY TOOL POST
- THREAD DIAL
- FOOT BRAKE
- WORK LAMP
- REAR SPLASH GUARD
- 10" FACE PLATE
- COOLANT SYSTEM
- 3-3/4" STEADY REST
- FOLLOW REST
- REMOVABLE GAP
- DEAD CENTERS AND SLEEVE
- OPERATION AND PARTS MANUAL
OPTIONAL EQUIPMENT ......... PRICE ON REQUEST
- 5C COLLET CLOSER ................. POR
- 5C COLLET SETS: ROUND, SQ HEX .... POR
- JACOBS DRILL CHUCK ............... POR
- NEWALL DIGITAL READOUT ........... POR
- IMPORTED DIGITAL READOUT ......... POR
- QUICK CHANGE TOOL POST W/HOLDERS . POR
- LIVE CENTER ...................... POR
- CARBIDE CUTTER SET ............... POR
