Top Seller
ACCORD LATHES in Dodge Center,
Location:
Dodge Center, MN
Price:
$5,750 USD
Manufacturer:
Accord lathes
Model:
AYL-1440GH
Spindle Bore:
1-1/2"
Distance between Centers:
40"

Specifications

Condition:
new
Stock number:
061834
Bed width:
8-1/4"
Main motor:
3 HP, 220V, 3 PH, 2 SPEED
Quill taper:
MT #3
Quill travel:
4 3/4"
Spindle bore:
1-1/2"
Spindle nose:
D1-4
Swing in gap:
20"
Center height:
7"
Length of gap:
6-1/4"
Spindle taper:
MT #5
5c collet sets:
ROUND, SQ HEX .... POR
Quill diameter:
2 3/4"
Swing over bed:
14"
Leadscrew pitch:
7/8" 8 TPI
Inch threads (40):
4-112 TPI
Maximum tool size:
3/4" X 3/4"
Optional equipment:
PRICE ON REQUEST
Metric threads (22):
0.045-7.5MM
Spindle speed steps:
16
Swing over cross side:
8-5/8"
Maximum compound travel:
4"
Distance between centers:
40"
Subcategory:
Engine

Description

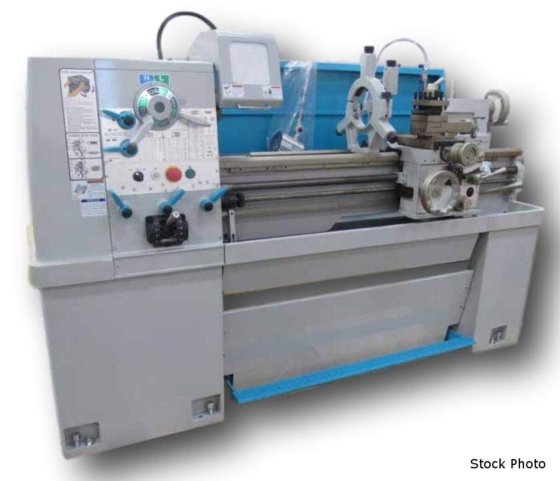

ACCORD (NEW) MODEL AYL-1440GH ENGINE LATHE
CAPACITY
SWING OVER BED ................ 14"
SWING OVER CROSS SIDE ......... 8-5/8"
SWING IN GAP .................. 20"
LENGTH OF GAP ................. 6-1/4"
CENTER HEIGHT ................. 7"
DISTANCE BETWEEN CENTERS ...... 40"
BED WIDTH ..................... 8-1/4"
MAXIMUM TOOL SIZE ............. 3/4" X 3/4"
MAXIMUM CROSS SLIDE TRAVEL .... 7"
MAXIMUM COMPOUND TRAVEL ....... 4"
HEADSTOCK
SPINDLE BORE .................. 1-1/2"
SPINDLE NOSE .................. D1-4
SPINDLE TAPER ................. MT #5
SPINDLE SPEED STEPS ........... 16
SPEED RANGE ... 45, 70, 90, 108, 140, 165,
............... 215, 255, 330, 385, 510,
............... 585, 770, 900, 1170, 1800
FEEDS & THREADS
LEADSCREW PITCH ............... 7/8" 8 TPI
INCH THREADS (40) ............. 4-112 TPI
METRIC THREADS (22) ........... 0.045-7.5MM
CROSS FEED RANGE (40) .. 0.0003-0.0294 IPR
LONGITUDINAL FEEDS (40). 0.0012-0.0294 IPR
TAIL STOCK
QUILL TRAVEL .................. 4 3/4"
QUILL DIAMETER ................ 2 3/4"
QUILL TAPER ................... MT #3
MOTOR
MAIN MOTOR ...... 3 HP, 220V, 3 PH, 2 SPEED
COOLANT MOTOR ... 1/8 HP, 220V, 3 PHASE
FEATURES
3 BEARING SPINDLE DESIGN
TOTALLY ENCLOSED GEAR BOX
AUTOMATIC LONG & CROSS FEEDING
MAIN SPINDLE HARDENED AND GROUND
FINE-GRAIN, HIGH-TENSILE CAST IRON BED
JOG BUTTON FOR EASY GEAR ENGAGEMENT
EMERGENCY STOP BUTTON
STANDARD EQUIPMENT:
6" 3-JAW CHUCK
8" 4-JAW CHUCK
4-WAY TOOL POST
THREAD DIAL
REAR SPLASH GUARD
10" FACE PLATE
3-3/4" STEADY REST
FOLLOW REST
REMOVABLE GAP
DEAD CENTERS AND SLEEVE
OPERATION AND PARTS MANUAL
OPTIONAL EQUIPMENT ......... PRICE ON REQUEST
5C COLLET CLOSER ................. POR
5C COLLET SETS: ROUND, SQ HEX .... POR
JACOBS DRILL CHUCK ............... POR
QUICK CHANGE TOOL SYSTEM ......... POR
LIVE CENTER ...................... POR
