BIRMINGHAM LATHES in Dodge Center,
Location:
Dodge Center, MN
Price:
$3,315 USD
Manufacturer:
Birmingham lathes
Model:
YCL-1236GH BENCH
Distance between Centers:
36"
Spindle Nose:
D1-4

Specifications

Condition:
new
Stock number:
061782
Taper:
MT 3
Diameter:
1.25"
Spindle nose:
D1-4
Width of bed:
7.25"
Maximum travel:
4"
Max swing over bed:
12"
Power of main motor:
2 HP, 220 V, 1 PH
Cross feeds-40 kinds:
0004"-.0105"/REV
Maximum swing in gap:
17"
Inch threads-40 kinds:
112-4 TPI
Max swing ovr carriage:
7"
Effective length in gap:
5"
Taper of spindle center:
MT 5
Distance between centers:
36"
Spindle speeds - 9 steps:
70-1, 400 RPM
Subcategory:
Engine

Description

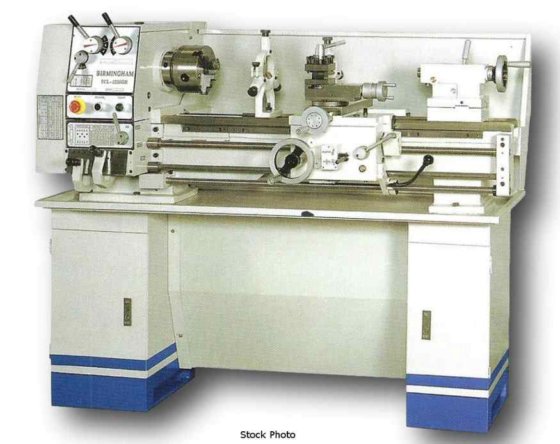

(NEW) BIRMINGHAM MODEL YCL-1236GH ALL GEAR
HEAD BENCH LATHE WITH FLOOR STAND
MAX SWING OVER BED ............ 12"
MAX SWING OVR CARRIAGE ........ 7"
MAXIMUM SWING IN GAP .......... 17"
EFFECTIVE LENGTH IN GAP ....... 5"
WIDTH OF BED .................. 7.25"
DISTANCE BETWEEN CENTERS ...... 36"
SPINDLE NOSE .................. D1-4
DIAMETER OF SPINDLE THRU BORE . 1.5"
TAPER OF SPINDLE CENTER ....... MT 5
SPINDLE SPEEDS - 9 STEPS ...... 70-1, 400 RPM
............... 70, 200, 220, 270, 360, 600
..................... 800, 1,000, 1,400 RPM
LONGITUDINAL FEEDS-40 KINDS .0011"-.0311"/REV
CROSS FEEDS-40 KINDS ...... .0004"-.0105"/REV
METRIC THREADS-30 KINDS ... .2-4.5 MM
INCH THREADS-40 KINDS ..... 112-4 TPI
MAX TRAVEL OF CROSS SLIDE . 6-7/8"
MAX TRAVEL OF TOP SLIDE ... 3-3/4"
4-WAY TOOL POST CAPACITY .. 3/4" X 3/4"
TAILSTOCK QUILL:
DIAMETER ................ 1.25"
TAPER ................... MT 3
MAXIMUM TRAVEL .......... 4"
POWER OF MAIN MOTOR ....... 2 HP, 220 V, 1 PH
BED MADE OF FINE GRAIN HIGH TENSILE CAST IRON
HARDENED AND PRECISION GROUND:
MAIN SPINDLE
BEDWAYS INDUCTION
SPLINED SHAFTS IN HEADSTOCK
STANDARD EQUIPMENT
FOLLOW REST
4-WAY TOOL POST
THREAD CHASING DIAL
CENTER AND SLEEVE
TOOL KIT WITH TOOLS
FULL LENGTH SPLASH GUARD
6" 3-JAW CHUCK
8" 4-JAW CHUCK
3-3/4" STEADY REST
10" FACE PLATE
OPERATION AND PARTS MANUAL
REMOVABLE GAP
JOG BUTTON
EMERGENCY STOP BUTTON
