JET LATHES in Dodge Center,
Location:
Dodge Center, MN
Price:
$16,499 USD
Manufacturer:
JET Tools lathes
Model:
321930 GH-1640ZX
Spindle Bore:
3-1/8"

Specifications

Condition:
new
Stock number:
061764
Drive:
GEARED HEAD
Motor:
7.5 HP
Voltage:
230/460 V, 3 PH
Prewired:
230
Spindle bore:
3-1/8"
Width of bed:
13-1/8"
Length of gap:
12"
Max tool size:
1" X 1"
Spindle mount:
D1-8
Swing over bed:
16"
Carriage travel:
36-9/16"
Swing through gap:
25-1/2"
Cross slide travel:
9"
Follow rest capacity:
1/2" - 3-1/2"
Range of cross feeds:
0006-.0365 IPR
Steady rest capacity:
3/8" - 7"
Compound slide travel:
5-1/8"
Range of inch threads:
1-5/8 - 72 TPI
Number of inch threads:
61
Swing over cross slide:
10"
Range of metric threads:
0.05-20
Range of spindle speeds:
25 - 1,800 RPM
Subcategory:
Engine

Description

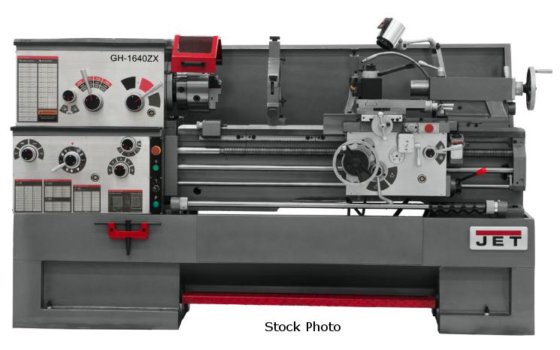

JET (NEW) MODEL 321930 GH-1640ZX GEARED HEAD
ENGINE LATHE WITH 3-1/8" LARGE SPINDLE BORE
SWING OVER BED .............. 16"
SWING OVER CROSS SLIDE ...... 10"
SWING THROUGH GAP ........... 25-1/2"
LENGTH OF GAP ............... 12"
DISTANCE BETWEEN CENTERS .... 40"
SPINDLE BORE................. 3-1/8"
SPINDLE MOUNT ............... D1-8
SPINDLE TAPER (WITH SLEEVE) . MT-7 (MT-5)
NUMBER OF SPINDLE SPEEDS .... 12
RANGE OF SPINDLE SPEEDS ..... 25 - 1,800 RPM
LONGITUDINAL/CROSS FEED RATES 122
RANGE OF LONGITUDINAL FEEDS . .0015-.0913 IPR
RANGE OF CROSS FEEDS ........ .0006-.0365 IPR
NUMBER OF INCH THREADS ...... 61
RANGE OF INCH THREADS ....... 1-5/8 - 72 TPI
NUMBER OF METRIC THREADS .... 24
RANGE OF METRIC THREADS ..... 0.05-20
MAX TOOL SIZE ............... 1" X 1"
COMPOUND SLIDE TRAVEL ....... 5-1/8"
CROSS SLIDE TRAVEL .......... 9"
CARRIAGE TRAVEL ............. 36-9/16"
TAILSTOCK SPINDLE TRAVEL .... 5"
TAPER IN TAILSTOCK SPINDLE .. MT-4
FOLLOW REST CAPACITY ........ 1/2" - 3-1/2"
STEADY REST CAPACITY ........ 3/8" - 7"
WIDTH OF BED ................ 13-1/8"
MOTOR ....................... 7.5 HP
VOLTAGE ..................... 230/460 V, 3 PH
PREWIRED .................... 230
DRIVE ....................... GEARED HEAD
STANDARD EQUIPMENT
10" 3-JAW SCROLL CHUCK W/TOP REVERSING JAWS
12" 4-JAW INDEPENDENT CHUCK
12" FACE PLATE
4-WAY TOOL POST
FOLLOW REST
LARGE CAPACITY STEADY REST
FULLY-INTEGRATED COOLANT SYSTEM
FULL LENGTH SPLASH GUARD AND COOLANT RETURN
LARGE, EASY-TO-USE FOOT BRAKE
ARTICULATING HALOGEN WORK LAMP
CENTRALLY LOCATED CONTROLS WITH JOG BUTTON
THREADING DIAL
MOUNTING PADS AND LEVELERS
LIVE CENTER
TOLERANCE TEST CERTIFICATE
TOOL BOX AND ADJUSTING TOOLS
FEATURES
BORE SPINDLE IS SUPPORTED BY 1 BALL AND 2
2 TAPERED BEARINGS
CHROME MOLYBDENUM HEADSTOCK GEARS ARE
HARDENED, GROUND AND SHAVED
UNIVERSAL GEARBOX ALLOWS INCH, METRIC,
DIAMETRAL AND MODULE PITCH THREADS
WITHOUT CHANGING GEARS
1-SHOT LUBRICATION
TURCITE-B ON BED SLIDING SURFACES
T-SLOTTED COMPOUND SLIDE
1-PIECE CAST IRON BASE
HIGH QUALITY ANSI CLASS 50 WEAR-RESISTANT
BED WAYS ARE HARDENED AND GROUND
REMOVABLE GAP ALLOWS LARGE DIAMETER WORK
5-POSITION AUTOMATIC CARRIAGE STOP
CHROME LEVERS, DIALS AND KNOBS
MEEHANITE CASTINGS
