ACCORD LATHES in Dodge Center,
Location:
Dodge Center, MN
Price:
$30,500 USD
Manufacturer:
Accord lathes
Model:
AACH-2290 LATHE
Spindle Nose:
D1-11/MT#6

Specifications

Condition:
new
Stock number:
061756
Voltage:
220V/440V
Bed width:
15-3/4"
Bed height:
13-7/8 "
Cross feed:
0.0006-0.017 IPR
Quill taper:
MT #5
Quill travel:
7"
Spindle hole:
4-1/8"
Spindle nose:
D1-11/MT#6
Swing in gap:
31"
Quill diameter:
3"
Spindle speeds:
13-1200 RPM
Swing over bed:
22"
Leadscrew pitch:
4 TPI
Travel-compound:
9-1/2"
Travel-crosslide:
15-3/4"
Longitudinal feed:
0.0012~0.034 IPR
Leadscrew diameter:
1.75
Longitudinal rapid:
120"/160" OPT
Spindle drive motor:
15 HP
Swing over crosslide:
13-3/8"
Subcategory:
Engine

Description

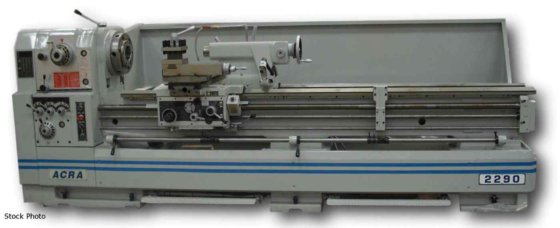

ACCORD (NEW) MODEL AACH-2290 EXTRA WIDE BED
LATHE
SWING OVER BED ............. 22"
SWING IN GAP ............... 31"
SWING OVER CROSSLIDE ....... 13-3/8"
BED WIDTH .................. 15-3/4"
BED HEIGHT ................. 13-7/8 "
DISTANCE BETWEEN CENTER .... 90"
SPINDLE NOSE ............... D1-11/MT#6
SPINDLE HOLE ............... 4-1/8"
SPINDLE SPEEDS ............. 13-1200 RPM
TRAVEL-CROSSLIDE ........... 15-3/4"
TRAVEL-COMPOUND ............ 9-1/2"
LEADSCREW DIAMETER ......... 1.75
LEADSCREW PITCH ............ 4 TPI
INCH THREADS - 44 KINDS .... 2-72 TPI
METRIC THREADS - 39 KINDS .. 0.2~14 MM
LONGITUDINAL FEED .......... 0.0012~0.034 IPR
LONGITUDINAL RAPID ......... 120"/160" OPT
CROSS FEED ................. 0.0006-0.017 IPR
QUILL DIAMETER ............. 3"
QUILL TRAVEL ............... 7"
QUILL TAPER ................ MT #5
SPINDLE DRIVE MOTOR ........ 15 HP
VOLTAGE .................... 220V/440V
STANDARD ACCESSORIES:
3-JAW CHUCK 15" (4 JAW OPT)
FULL LENGTH SPLASH GUARD
COOLANT SYSTEM
4-WAY TOOL HOLDER
FOOT BRAKE
STEADY REST
HALOGEN WORK LAMP
