Location:
Dodge Center, MN, USA
Price:
No price
Manufacturer:
Summit lathes
Model:
33-9 X 160 BIG HOLE

Specifications

Condition:
new
Stock number:
061750
Subcategory:
Engine

Description

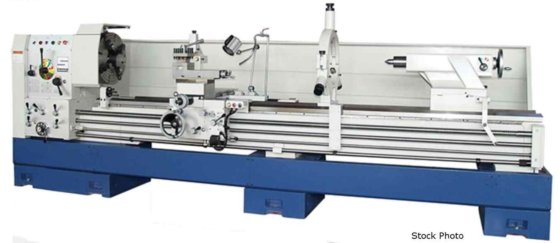

(NEW) SUMMIT 33-9 X 160 BIG HOLE ENGINE LATHE
SWING OVER BED ................. 33"
SWING OVER GAP ................. 41 3/4"
SWING OVER CROSS SLIDE ......... 24 3/4"
SPINDLE SPEEDS ................. 12
RANGE .......................... 11-700 RPM
HOLE THROUGH SPINDLE ........... 9.1"
SPINDLE NOSE ................... A2-15
CROSS SLIDE TRAVEL ............. 16-1/2"
COMPOUND TRAVEL ................ 9"
TRAVEL OF SPINDLE BARREL ....... 9"
DIAMETER OF SPINDLE BARREL ..... 3 3/4"
TAPER OF CENTER ................ #5 MT
TWO SPEED ...................... 1:1, 4:1
WIDTH OF BED ................... 18"
HARDNESS OF BED (ROCKWELL C) ... 42-50
DEGREES OF TAPER ............... +/- 10 DEG.
LENGTH OF TAPER PER SETTING .... 20"
SPINDLE MOTOR .................. 15 HP
RAPID TRAVERSE ................. 1/4 HP
COOLANT PUMP ................... 1/8 HP
ELECTRICS ...................... 220/440/3/60
STANDARD FEATURES:
QUICK-CHANGE GEAR BOX WILL CUT INCH,
METRIC, MODULE & DIAMETRAL PITCH
