Top Seller
KENT LATHES in Dodge Center,
Location:
Dodge Center, MN
Price:
$17,550 USD
Manufacturer:
Kent lathes
Model:
ML-1740T
Spindle Nose:
D1-6

Specifications

Condition:
new
Stock number:
061729
Bed width:
12"
Main motor:
7.5 HP
Cross feeds:
0.00075-0.02 IPR
Quill taper:
MT#4
Quill travel:
5"
Spindle hole:
3.125"
Spindle speed:
12 STEPS
Swing over gap:
24.5"
Cross slide width:
7.25"
Coolant pump motor:
1/8 HP
Cross slide travel:
10.6"
Longitudinal feeds:
0.0015-0.04 IPR
Swing over bed ways:
17"
Spindle nose camlock:
D1-6
Diametral pitch range:
21, 8-44 DP
Modular threads range:
18, 0.3-3.5 M
Bearing length on ways:
17.3"
Swing over cross slide:
10.875"
Control circuit voltage:
115 V
Spindle to sleeve taper:
MT#7-MT#4
Subcategory:
Engine

Description

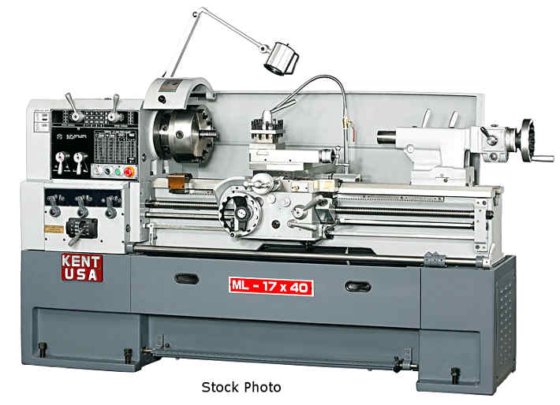

KENT (NEW) MODEL ML-1740T LATHE
CAPACITY:
SWING OVER BED WAYS ......... 17"
SWING OVER CROSS SLIDE ...... 10.875"
SWING OVER GAP .............. 24.5"
GAP LENGTH WITH FACE PLATE .. 8"
BED WIDTH ................... 12"
DISTANCE BETWEEN CENTERS .... 44"
HEADSTOCK:
SPINDLE HOLE ................ 3.125"
SPINDLE NOSE CAMLOCK ........ D1-6
SPINDLE TO SLEEVE TAPER ..... MT#7-MT#4
SPINDLE SPEED ............... 12 STEPS
............... 36-1800 RPM
CARRIAGE:
BEARING LENGTH ON WAYS ...... 17.3"
CROSS SLIDE WIDTH ........... 7.25"
CROSS SLIDE TRAVEL .......... 10.6"
TOP SLIDE (COMPOUND) TRAVEL . 4.75"
FEED BOX:
THREAD CAPACITY (INCHES) .... 45, 2-72 TPI
THREAD CAPACITY (METRIC) .... 39, 0.2-14 MM
MODULAR THREADS RANGE ....... 18, 0.3-3.5 M
DIAMETRAL PITCH RANGE ....... 21, 8-44 DP
LONGITUDINAL FEEDS ....... 0.0015-0.04 IPR
CROSS FEEDS .............. 0.00075-0.02 IPR
TAILSTOCK:
QUILL DIAMETER WITH TANG .... 2.3"
QUILL TRAVEL ................ 5"
QUILL TAPER ................. MT#4
POWER:
MAIN MOTOR .................. 7.5 HP
COOLANT PUMP MOTOR .......... 1/8 HP
CONTROL CIRCUIT VOLTAGE ..... 115 V
PRICE INCLUDES:
3-JAW CHUCK (10")
STEADY REST
FOLLOW REST
CHUCK COVER
HALOGEN WORK LIGHT
THREAD CHASING DIAL
4-POSITION TOOL POST
COOLANT SYSTEM W/ FULL-LENGTH SPLASH GUARD
3-POSITION CARRIAGE STOP
BED MOUNT CARRIAGE STOP
