ACCORD LATHES in Dodge Center,
Location:
Dodge Center, MN
Price:
$11,500 USD
Manufacturer:
Accord lathes
Model:
GNX-1660
Distance between Centers:
60"

Specifications

Condition:
new
Stock number:
061727
Bore:
3 1/8"
Nose:
D1-8
Taper:
MT NO.5
Speeds:
12 STEPS 42~1800 RPM
Bed width:
13.20"
Cross feed:
0.0006~0.0365 IPR
Cross slide:
8"
Quill taper:
MT NO.4
Inch threads:
65 KINDS 1 5/8~72 TPI
Quill travel:
3 3/4"
Swing in gap:
26"
Coolant motor:
1/6 HP
Compound slide:
4"
Metric threads:
28 KINDS 0.5~20 MM
Module threads:
24 KINDS 0.25~10
Quill diameter:
2 3/4"
Swing over bed:
16"
Spindle drive motor:
7.5 HP
Optional accessories:
PRICE ON REQUEST
Swing over cross side:
10"
Distance between centers:
60"
Subcategory:
Engine

Description

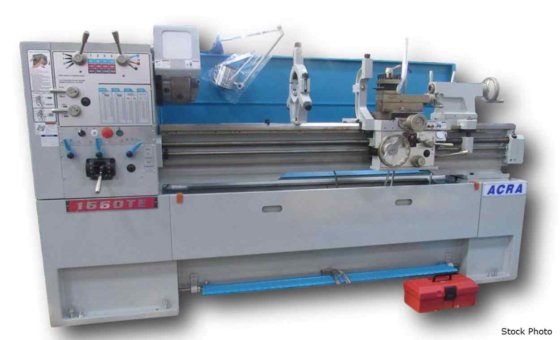

ACCORD (NEW) MODEL GNX-1660 GEARED HEAD
ENGINE LATHE
CAPACITY:
SWING OVER BED ................... 16"
SWING OVER CROSS SIDE ............ 10"
SWING IN GAP ..................... 26"
DISTANCE BETWEEN CENTERS ........... 60"
BED WIDTH .......................... 13.20"
SPINDLE:
NOSE ............................. D1-8
BORE ............................. 3 1/8"
TAPER ............................ MT NO.5
SPEEDS ............... 12 STEPS 42~1800 RPM
TRAVEL:
CROSS SLIDE ...................... 8"
COMPOUND SLIDE ................... 4"
THREADS & FEEDS:
INCH THREADS ........ 65 KINDS 1 5/8~72 TPI
METRIC THREADS ...... 28 KINDS 0.5~20 MM
MODULE THREADS ...... 24 KINDS 0.25~10
DIAMETRICAL THREADS . 45 KINDS 3.25~96
LONGITUDINAL FEED ... 0.0015~0.0913 IPR
CROSS FEED .......... 0.0006~0.0365 IPR
TAIL STOCK:
QUILL DIAMETER ................... 2 3/4"
QUILL TRAVEL ..................... 3 3/4"
QUILL TAPER ...................... MT NO.4
POWER:
SPINDLE DRIVE MOTOR .............. 7.5 HP
COOLANT MOTOR .................... 1/6 HP
FEATURES:
HEAVY DUTY HEADSTOCK DESIGN
PRECISION ALL GEARED HEADSTOCK
HARDENED AND GROUND GEARS AND SHAFTS
TOTALLY ENCLOSED UNIVERSAL GEAR BOX
GAP BED
STANDARD ACCESSORIES:
10" 3 JAW CHUCK
12" 4 JAW CHUCK
4-WAY TOOL POST
FOOT BRAKE
WORK LAMP
FULL LENGTH SPLASH GUARD
FACE PLATE
COOLANT SYSTEM
TOOL BOX WITH TOOLS
STEADY/FOLLOW REST
GAP BED
OPTIONAL ACCESSORIES ....... PRICE ON REQUEST
MICRO BED STOP ................... POR
FOLLOW REST ...................... POR
TAPER ATTACHMENT/INSTALLATION .... POR
LEVER TYPE 5C COLLET CLOSER JFK .. POR
IMPORT COLLET CLOSER ............. POR
ACU-RITE DRO 40"/60" ............. POR
NEWALL DRO 40"/60" ............... POR
DRO INSTALLATION ................. POR
QUICK CHANGE TOOL HOLDER ......... POR
GAP BED .......................... POR
HALOGEN LIGHT .................... POR
