Top Seller
VICTOR LATHES in Dodge Center,
Location:
Dodge Center, MN
Manufacturer:
Victor lathes
Model:
20120S
Spindle Bore:
3-1/8"
Spindle Nose:
D1-8 CAMLOCK

Specifications

Condition:
new
Stock number:
061656
Main motor:
10 HP, 3 PH
Spindle nose:
D1-8 CAMLOCK
Swing over bed:
20"
Cross slide travel:
12-1/2"
Compound slide travel:
10"
Spindle bore diameter:
3-1/8"
Swing over cross-slide:
13"
Distance between center:
120"
Range of spindle speeds:
20~1550 RPM
Number of spindle speeds:
12
Subcategory:
Engine

Description

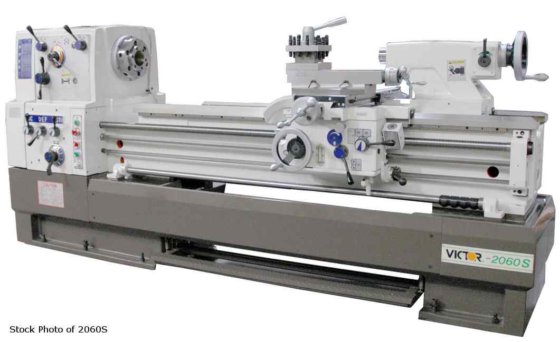

VICTOR (NEW) MDL 20120S PRECISION HEAVY-DUTY
LATHE
CAPACITY
SWING OVER BED ............... 20"
SWING OVER CROSS-SLIDE ....... 13"
DISTANCE BETWEEN CENTER ...... 120"
HEADSTOCK
SPINDLE BORE DIAMETER ........ 3-1/8"
SPINDLE NOSE ................. D1-8 CAMLOCK
NUMBER OF SPINDLE SPEEDS ..... 12
RANGE OF SPINDLE SPEEDS ...... 20~1550 RPM
CARRIAGE
CROSS SLIDE TRAVEL ........... 12-1/2"
COMPOUND SLIDE TRAVEL ........ 10"
TAILSTOCK SPINDLE BORE TAPER ... M.T. #5
MAIN MOTOR ..................... 10 HP, 3 PH
STANDARD MACHINE ACCESSORIES
CENTER SLEEVE
TOOL BOX WITH KITS
HEX WRENCHES
GUN OILER
CHANGE GEAR
Z-AXIS RAPID FEED
LEVELING SCREW AND PADS
THREAD DIAL INDICATOR
DEAD CENTER M.T. #5
SCREW DRIVER
10 HP, 3 PH MOTOR
OPERATION MANUAL & PARTS LIST
COOLANT SYSTEM
LEVER CHANGE INCH/METRIC GEAR BOX
INCH/METRIC DUAL DIALS
STEADY RESTS
FULL LENGTH SPLASH GUARD
F.O.B.-- SHIPPING POINT
