Top Seller
VICTOR LATHES in Dodge Center,
Location:
Dodge Center, MN
Manufacturer:
Victor lathes
Model:
S22120S
Spindle Bore:
4-1/8"
Spindle Nose:
D1-11 CAMLOCK

Specifications

Condition:
new
Stock number:
061657
Speed number:
12 STEPS
Speed ranges:
15~1200 RPM
Spindle nose:
D1-11 CAMLOCK
Spindle motor:
15 HP, 3 PH
Swing over bed:
26"
Cross slide travel:
12-1/2"
Compound rest travel:
10"
Spindle bore diameter:
4-1/8"
Tailstock quill taper:
M.T. #5
Swing over cross-slide:
18-1/16"
Subcategory:
Engine

Description

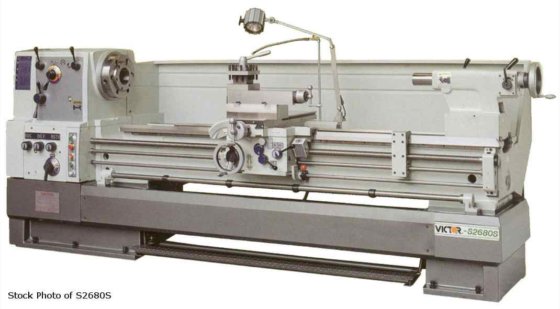

VICTOR (NEW) MDL S22120S PRECISION HEAVY-DUTY
LATHE
CAPACITY
SWING OVER BED .............. 26"
SWING OVER CROSS-SLIDE ...... 18-1/16"
DISTANCE BETWEEN CENTERS .... 120"
SPINDLE MOTOR ............... 15 HP, 3 PH
HEADSTOCK
SPINDLE BORE DIAMETER ....... 4-1/8"
SPINDLE NOSE ................ D1-11 CAMLOCK
SPEED NUMBER ................ 12 STEPS
SPEED RANGES ................ 15~1200 RPM
CARRIAGE
CROSS SLIDE TRAVEL .......... 12-1/2"
COMPOUND REST TRAVEL ........ 10"
TAILSTOCK QUILL TAPER ......... M.T. #5
STANDARD MACHINE ACCESSORIES
CENTER SLEEVE M.T. #5/#7
TOOL BOX WITH KITS
D.P. & M.P. CHANGE GEAR
RAPID FEED MOTOR
LEVELING SCREW
THREAD DIAL INDICATOR
DEAD CENTER M.T. #5
OPERATION MANUAL & PARTS LIST
COOLANT SYSTEM
STEADY RESTS
FULL LENGTH SPLASH GUARD
F.O.B. SHIPPING POINT
