Location:
Dodge Center, MN, USA
Price:
No price
Manufacturer:
Victor lathes
Model:
1440G HI SPEED LATHE

Specifications

Condition:
new
Stock number:
061605
Subcategory:
Engine

Description

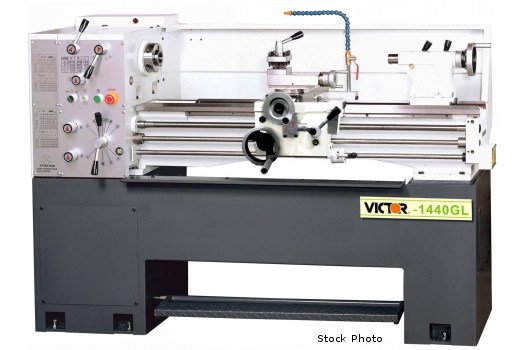

VICTOR (NEW) MDL 1440G PRECISION HIGH SPEED
ENGINE LATHE
SPINDLE BORE,,,,,,,,,,,,,,,,,,, 1-9/16"
SWING OVER BED,,,,,,,,,,,,,,,,, 14"
BETWEEN CENTERS,,,,,,,,,,,,,,,, 40"
SPINDLE RPM,,,,,,,,,,,,,,,,,,,, 42-2000 RPM
(16 STEPS)
SPINDLE NOSE,,,,,,,,,,,,,,,,,,, D1-4 CAMLOCK
MAIN MOTOR,,,,,,,,,,,,,,,,,,,,, 3 HP 3 PHASE
-=-=-=-=-=-=-=-=--=-=-=-=-=-=-=-=-=-=-=--=-=-
PRICE INCLUDES SPECIAL PACKAGE
6" 3 JAW CHUCK FACE PLATE
8" 4 JAW CHUCK FULL LENGTH SPLASH GUARD
STEADY REST HALOGEN WORK LIGHT
FOLLOW REST CHUCK OVER W/LIMIT SWITCH
4 WAY TOOL POST
-=-=-=--=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=
CAPACITY
MAX SWING OVER BED,,,,,,,,,,,,,,, 14"
MAX SWING OVER CROSS CARRIAGE,,,, 9"
MAX SWING IN GAP,,,,,,,,,,,,,,,,, 21"
WIDTH OF GAP,,,,,,,,,,,,,,,,,,,,, 9.8"
WIDTH OF BED,,,,,,,,,,,,,,,,,,,,, 10"
MAX DISTANCE BETWEEN CENTERS,,,,, 39.4"
HEADSTOCK
SPINDLE BORE DIAMETER,,,,,,,,,,, 1-9/16"
SPINDLE BORE TAPER,,,,,,,,,,,,,, MT #5
TAPER OF CENTER IN SLEEVE,,,,,,, MT #3
