VICTOR LATHES in Dodge Center,
Location:
Dodge Center, MN
Manufacturer:
Victor lathes
Model:
1440GVS LATHE
Spindle Bore:
1-9/16"
Spindle Nose:
D1-4 CAMLOCK

Specifications

Condition:
new
Stock number:
061607
Main motor:
3 HP 3 PHASE
Cooant pump:
1/8 HP 3 PH
Spindle rpm:
42-2000 RPM
Inch threads:
4 - 112 TPI
Spindle bore:
1-9/16"
Spindle nose:
D1-4 CAMLOCK
Width of bed:
10"
Width of gap:
9.8"
Metric threads:
0.25"-6.0 MM
Spindle nose 2:
CAMLOCK D1-4
Spindle travel:
4-1/4"
Swing over bed:
14"
Between centers:
40"
Max swing in gap:
21"
Spindle diameter:
1-1/2"
Number of spindle:
VARIABLE 2
Cross slide travel:
8-1/16"
Max swing over bed:
14"
Pitch of leadscrew:
1" OR 4TPI
Spindle bore taper:
MT #5
Range of cross feeds:
0.001"-0.02"
Compound slide travel:
3-3/4"
Spindle bore diameter:
1-9/16"
Tailstock taper center:
MT#3
Range of spindle speeds:
LOW GEAR
Taper of center in sleeve:
MT #3
Subcategory:
Engine

Description

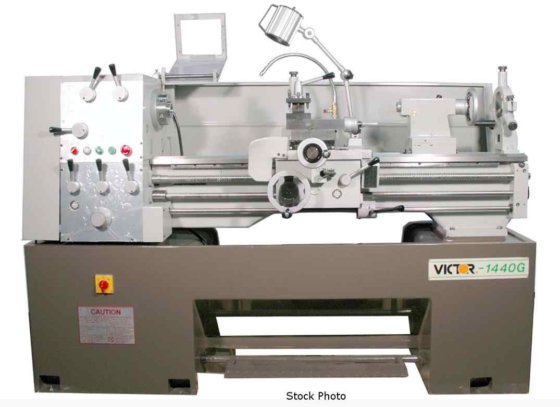

VICTOR (NEW) MDL 1440GVS PRECISION INFINITELY
VARIABLE SPEED LATHE
SPINDLE BORE,,,,,,,,,,,,,,,,,,, 1-9/16"
SWING OVER BED,,,,,,,,,,,,,,,,, 14"
BETWEEN CENTERS,,,,,,,,,,,,,,,, 40"
SPINDLE RPM,,,,,,,,,,,,,,,,,,,, 42-2000 RPM
(16 STEPS)
SPINDLE NOSE,,,,,,,,,,,,,,,,,,, D1-4 CAMLOCK
MAIN MOTOR,,,,,,,,,,,,,,,,,,,,, 3 HP 3 PHASE
-=-=-=-=-=-=-=-=--=-=-=-=-=-=-=-=-=-=-=--=-=-
PRICE INCLUDES SPECIAL PACKAGE
6" 3 JAW CHUCK FACE PLATE
8" 4 JAW CHUCK FULL LENGTH SPLASH GUARD
STEADY REST HALOGEN WORK LIGHT
FOLLOW REST CHUCK OVER W/LIMIT SWITCH
4 WAY TOOL POST
-=-=-=--=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=
CAPACITY
MAX SWING OVER BED,,,,,,,,,,,,,,, 14"
MAX SWING OVER CROSS CARRIAGE,,,, 9"
MAX SWING IN GAP,,,,,,,,,,,,,,,,, 21"
WIDTH OF GAP,,,,,,,,,,,,,,,,,,,,, 9.8"
WIDTH OF BED,,,,,,,,,,,,,,,,,,,,, 10"
MAX DISTANCE BETWEEN CENTERS,,,,, 39.4"
HEADSTOCK
SPINDLE BORE DIAMETER,,,,,,,,,,, 1-9/16"
SPINDLE BORE TAPER,,,,,,,,,,,,,, MT #5
TAPER OF CENTER IN SLEEVE,,,,,,, MT #3
SPINDLE NOSE,,,,,,,,,,,,,,,,,,,, CAMLOCK D1-4
NUMBER OF SPINDLE,,,,,,,,,,,,,,, VARIABLE 2
STEP
RANGE OF SPINDLE SPEEDS,,,,,,,,, LOW GEAR
30 - 360 RPM
HIGH GEAR
160 - 2500
THREADS AND FEEDS
RANGE OF LONGITUDINAL FEEDS,,,,, 0.002"-0.04"
RANGE OF CROSS FEEDS,,,,,,,,,,,, 0.001"-0.02"
PITCH OF LEADSCREW,,,,,,,,,,,,,, 1" OR 4TPI
INCH THREADS,,,,,,,,,,,,,,,,,,,, 4 - 112 TPI
METRIC THREADS,,,,,,,,,,,,,,,,,, 0.25"-6.0 MM
CARRIAGE
CROSS SLIDE TRAVEL,,,,,,,,,,,,,, 8-1/16"
COMPOUND SLIDE TRAVEL,,,,,,,,,,, 3-3/4"
TAILSTOCK
TAILSTOCK TAPER CENTER,,,,,,,,,, MT#3
SPINDLE TRAVEL,,,,,,,,,,,,,,,,,, 4-1/4"
SPINDLE DIAMETER,,,,,,,,,,,,,,,, 1-1/2"
POWER
MAIN MOTOR,,,,,,,,,,,,,,,,,,,,,, 3 HP 3 PHASE
COOANT PUMP,,,,,,,,,,,,,,,,,,,,, 1/8 HP 3 PH
