Top Seller
BIRMINGHAM LATHES in Dodge Center,
Location:
Dodge Center, MN
Price:
$11,050 USD
Manufacturer:
Birmingham lathes
Model:
YCL-1640
Distance between Centers:
40"

Specifications

Condition:
new
Stock number:
061229
Cross feeds:
00033-
Inch threads:
112 - 2 TPI
Width of bed:
11-13/16"
Module threads:
0.1 - 7MM
Swing over bed:
16-1/8"
Main motor power:
5 HP
Max swing in gap:
25-3/16"
Longitudinal feeds:
0011" -
Metric pitch threads:
0.1 - 14 MM
Range of spindle speed:
25 - 2000
Diametral pitch threads:
112 - 4 DP
Effective length in gap:
9-1/2"
Coolant pump motor power:
1/8 HP
Distance between centers:
40"
Max travel of cross slide:
12-3/16"
Travel of tailstock quill:
4-13/16"
Max swing over cross slide:
8-13/16"
Subcategory:
Engine

Description

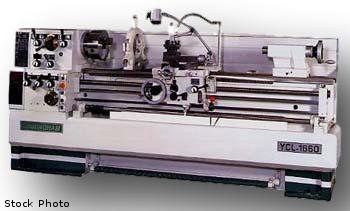

(NEW) BIRMINGHAM MDL YCL-1640 HIGH SPEED
PRECISION GAP BED LATHE
SPECIFICATIONS:
SWING OVER BED,,,,,,,,,,,,,,,,,, 16-1/8"
DISTANCE BETWEEN CENTERS,,,,,,,, 40"
MAX SWING OVER CROSS SLIDE,,,,,, 8-13/16"
MAX SWING IN GAP,,,,,,,,,,,,,,,, 25-3/16"
EFFECTIVE LENGTH IN GAP,,,,,,,,, 9-1/2"
WIDTH OF BED,,,,,,,,,,,,,,,,,,,, 11-13/16"
HEADSTOCK:
SPINDLE NOSE (SPINDLE MOUNT),,,, D1-6
DIAMETER OF SPINDLE THRU HOLE,,, 2-9/32"
SPINDLE TAPER (WITH SLEEVE),,,,, MT #6
RANGE OF SPINDLE SPEED,,,,,,,,,, 25 - 2000
FEEDS & THREADS:
LONGITUDINAL FEEDS,,,,,,,,,,,,,, .0011" -
.0633" REV
42 KINDS
CROSS FEEDS,,,,,,,,,,,,,,,,,,,,, .00033-
.01837" REV
42 KINDS
METRIC PITCH THREADS,,,,,,,,,,,, 0.1 - 14 MM
41 KINDS
INCH THREADS,,,,,,,,,,,,,,,,,,,, 112 - 2 TPI
60 KINDS
MODULE THREADS,,,,,,,,,,,,,,,,,, 0.1 - 7MM
34 KINDS
DIAMETRAL PITCH THREADS,,,,,,,,, 112 - 4 DP
60 KINDS
CARRIAGE:
MAX TRAVEL OF CROSS SLIDE,,,,,,, 12-3/16"
MAX TRAVEL OF COMPOUND SLIDE,,,, 5"
TAILSTOCK:
TRAVEL OF TAILSTOCK QUILL,,,,,,, 4-13/16"
DIAMETER OF TAILSTOCK QUILL,,,,, 2-3/8"
TAPER HOLE OF TAILSTOCK QUILL,,, MT NO. 4
MOTORS:
MAIN MOTOR POWER,,,,,,,,,,,,,,,, 5 HP
COOLANT PUMP MOTOR POWER,,,,,,,, 1/8 HP
STANDARD ACCESSORIES:
FOLLOW REST COOLANT SYSTEM
14" FACE PLATE HALOGEN WORK LIGHT
7-1/2" STEADY REST REMOVEABLE GAP
10" 3-JAW CHUCK 4-WAY TOOL POST
12" 4-JAW CHUCK THREAD CHASING DIAL
OPERATIONS/PARTS MANUAL
CENTERS AND SLEEVE
TOOL KIT WITH TOOLS
FULL LENGTH FOOT BRAKE
FULL LENGTH SPLASH GUARD
HAND OIL PUMP FOR WAYS
AUTOMATIC KICK-OUT LONGITUDINAL CARRIAGE STOP
FEATURES:
5 HP MAIN MOTOR
ONE PIECE CAST IRON BASE
NO CHANGE GEARS REQUIRED
12 SPEEDS FROM 25-2000 RPM
D1-6 SPINDLE WITH 2-9/32" BORE
HARDENED AND GROUND BEDWAYS
BED MADE OF FINE GRAIN HIGH TENSILE CAST
IRON
60 KINDS OF INCH THREADS FROM 112-2 TPI
ALL GEARS AND SHAFTS HARDENED AND PRECISION
GROUND
MAIN SPINDLE SUPPORTED AT 3 POINT BY
PRECISION BEARINGS
