Top Seller
BIRMINGHAM LATHES in Dodge Center,
Location:
Dodge Center, MN
Price:
$17,550 USD
Manufacturer:
Birmingham lathes
Model:
YCL-20120
Spindle Nose:
D1-8

Specifications

Condition:
new
Stock number:
061194
Quill:
7"
Dia/pitch:
DIA 1-5/8"
Cross feeds:
35 KINDS,,,, 0.00048" -
Inch threads:
60 KINDS,,,, 112 - 2 TPI
Spindle nose:
D1-8
Width of bed:
13-3/4"
Power of main motor:
10 HP
4 way tool post size:
1" X 1"
Maximum swing in gap:
29"
Power of coolant pump:
1/8 HP
Maximum cutting length:
116"
Maximum swing over bed:
20"
Distance between center:
120"
Effective length in gap:
6"
Taper of spindle center:
MT #5
Spindle speeds (12 steps):
25,35,55,80
Subcategory:
Engine

Description

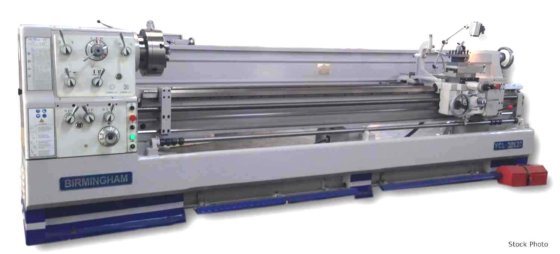

BIRMINGHAM (NEW) MDL YCL-20120 HIGH SPEED
PRECISION GAP BED LATHE
MAXIMUM SWING OVER BED,,,,,,,,,, 20"
DISTANCE BETWEEN CENTER,,,,,,,,, 120"
MAXIMUM CUTTING LENGTH,,,,,,,,,, 116"
MAXIMUM SWING OVER CROSS SLIDE,, 11-7/8"
MAXIMUM SWING IN GAP,,,,,,,,,,,, 29"
EFFECTIVE LENGTH IN GAP,,,,,,,,, 6"
WIDTH OF BED,,,,,,,,,,,,,,,,,,,, 13-3/4"
HEADSTOCK:
SPINDLE NOSE,,,,,,,,,,,,,,,,,,,, D1-8
DIAMETER OF SPINDLE THRU BORE,,, 3-1/8"
TAPER OF SPINDLE CENTER,,,,,,,,, MT #5
SPINDLE SPEEDS (12 STEPS),,,,,,, 25,35,55,80
120,170,235,350,525,700,1100,1600 RPM
FEEDS AND THREADS:
LONGITUDINAL FEEDS,,35 KINDS,,,, 0.0022" -
0.0612"/REV
CROSS FEEDS,,,,,,,,,35 KINDS,,,, 0.00048" -
0.01354"/REV
METRIC THREADS,,,,,,47 KINDS,,,, 0.2 - 14MM
INCH THREADS,,,,,,,,60 KINDS,,,, 112 - 2 TPI
MODULE THREADS,,,,,,39 KINDS,,,, 0.1 - 7MM
DIAMETRAL PITCH THREADS
50 KINDS,,,, 4 - 112 DP
CARRIAGE:
MAXIMUM TRAVEL OF CROSS SLIDE,,, 12-15/16"
MAXIMUM TRAVEL OF TOP SLIDE,,,,, 5-1/8"
4 WAY TOOL POST SIZE,,,,,,,,,,,, 1" X 1"
LONGITUDINAL LEADSCREW
DIA/PITCH,,,,,,,,,,,,,,,,,,,,, DIA 1-5/8"
4 TPI
TAILSTOCK:
DIAMETER OF TAILSTOCK QUILL,,,,, 3"
TAPER OF TAILSTOCK QUILL CENTER, MT #5
MAXIMUM TRAVEL OF TAILSTOCK
QUILL,,,,,,,,,,,,,,,,,,,,,,,,, 7"
MOTORS:
POWER OF MAIN MOTOR,,,,,,,,,,,,, 10 HP
230/460V/60 HZ 3 PHASE PREWIRED 230 V
POWER OF COOLANT PUMP,,,,,,,,,,, 1/8 HP
230/460V/80 HZ 3 PHASE PREWIRED 230 V
STANDARD EQUIPMENT:
-FOLLOW REST
-18" FACE PLATE
-6-1/2" STEADY REST W/ROLLERS
-12" 3 JAW CHUCK
-16" 4 JAW CHUCK
-10" DRIVE PLATE
-OPERATIONS AND PARTS MANUAL
-COOLANT SYSTEM
-HALOGEN WORK LIGHT
-REMOVEABLE GAP
-4 WAY TOOL POST
-THREAD CHASING DIAL
-HAND OIL PUMP FOR WAYS
-(2) DEAD CENTERS
-REDUCING SLEEVE MT7
-TOOL KIT WITH TOOLS
-4 POSITION AUTOMATIC KICK OUT
LONGITUDINAL CARRIAGE STOP
-FULL LENGTH FOOT BRAKE
-FULL LENGTH SPLASH GUARD
==OPTIONAL EQUIPMENT AVAILABLE UPON REQUEST==
TAPER ATTACHMENT
QUICK TOOL CHANGER
5C LEVER TYPE COLLET CLOSER
DIGITAL READOUT
12" STEADY REST WITH ROLLERS
