Top Seller
BIRMINGHAM LATHES in Dodge Center,
Location:
Dodge Center, MN
Price:
$3,770 USD
Manufacturer:
Birmingham lathes
Model:
YCL1340GH
Distance between Centers:
40"

Specifications

Condition:
new
Stock number:
060925
Width of bed:
7-3/8"
Width of gap:
7-7/8"
(morse taper):
D1-4
Length of bed:
65-1/4"
Saddle travel:
35-1/4"
Swing over gap:
18-3/4"
Feed rod diameter:
3/4"
Hole thru spindle:
1-3/8"
Cross slide travel:
6-7/8"
Main spindle motor:
2 HP
Max swing over bed:
13"
Lead screw diameter:
7/8"
Thread cutting range:
4-112 TPI
Top tool slide travel:
3-3/4"
Swing over cross slide:
8"
Headstock spindle taper:
MT-5
Range of spindle speeds:
8 SPEEDS
Tailstock spindle taper:
MT-3
Distance between centers:
40"
Tailstock spindle travel:
3-3/4"
Subcategory:
Engine

Description

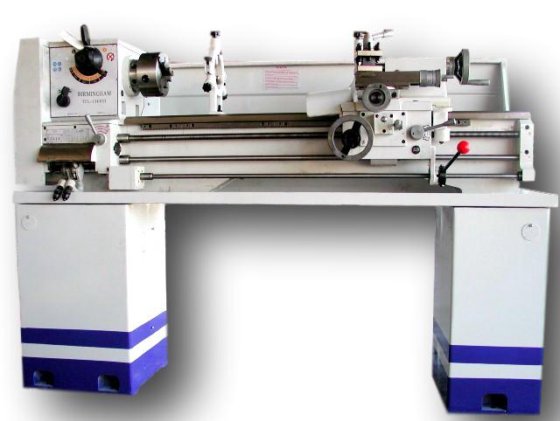

(NEW) BIRMINGHAM MODEL YCL-1340GH ALL GEAR
HEAD BENCH LATHE WITH FLOOR STAND
MAX SWING OVER BED,,,,,,,,,,,,, 13"
SWING OVER CROSS SLIDE,,,,,,,,, 8"
SWING OVER GAP,,,,,,,,,,,,,,,,, 18-3/4"
WIDTH OF GAP,,,,,,,,,,,,,,,,,,, 7-7/8"
DISTANCE BETWEEN CENTERS,,,,,,, 40"
LENGTH OF BED,,,,,,,,,,,,,,,,,, 65-1/4"
WIDTH OF BED,,,,,,,,,,,,,,,,,,, 7-3/8"
HOLE THRU SPINDLE,,,,,,,,,,,,,, 1-3/8"
TAILSTOCK SPINDLE TRAVEL,,,,,,, 3-3/4"
CROSS SLIDE TRAVEL,,,,,,,,,,,,, 6-7/8"
TOP TOOL SLIDE TRAVEL,,,,,,,,,, 3-3/4"
SADDLE TRAVEL,,,,,,,,,,,,,,,,,, 35-1/4"
HEADSTOCK SPINDLE TAPER,,,,,,,, MT-5
(MORSE TAPER),,,,,,,,,,,,,,,,,, D1-4
TAILSTOCK SPINDLE TAPER,,,,,,,, MT-3
RANGE OF SPINDLE SPEEDS,,,,,,,, 8 SPEEDS
70 - 2000
LEAD SCREW DIAMETER,,,,,,,,,,,, 7/8"
FEED ROD DIAMETER,,,,,,,,,,,,,, 3/4"
THREAD PER INCH OF LEAD SCREW,, 40
THREAD CUTTING RANGE,,,,,,,,,,, 4-112 TPI
MAIN SPINDLE MOTOR,,,,,,,,,,,,, 2 HP
STANDARD EQUIPMENT
MOTOR PULLEY
BACK PLATE FOR THREE-JAW CHUCK
BACK PLATE FOR FOUR-JAW CHUCK
CENTER SLEEVE MT-5
CENTER (MT-5)
TOOL BOX
CHANGE GEAR FOR THREADING
TOOL POST WRENCH
ALLEN WRENCHES
OPEN END WRENCH
SCREW DRIVER
OIL GUN
4 WAY TOOL POST
3-JAW SCROLL CHUCK
4-JAW INDEPENDENT CHUCK
STEADY REST - FOLLOW REST - FLOOR STAND
SPLASH GUARD
MOTOR - 2 HP
FACE PLATE 11-3/4"
