BIRMINGHAM LATHES in Dodge Center,
Location:
Dodge Center, MN
Price:
$5,655 USD
Manufacturer:
Birmingham lathes
Model:
YCL1440GH
Distance between Centers:
40"

Specifications

Condition:
new
Stock number:
060992
Cross feeds:
0.0003 -
Inch threads:
4 - 112 TPI
Width of bed:
8-1/8"
Max tool size:
5/8" X 5/8"
Swing over bed:
14"
Main motor power:
3 HP
Metric pitch threads:
0.45 - 7.5
Diameter of leadscrew:
7/8"
Range of spindle speed:
45 - 1800
Effective length in gap:
6-1/4"
Coolant pump motor power:
1/8 HP
Distance between centers:
40"
Number of spindle speeds:
16
Max travel of cross slide:
7"
Travel of tailstock quill:
4-3/4"
Max swing over cross slide:
8-5/8"
Pitch threads of leadscrew:
8 TPI
Subcategory:
Engine

Description

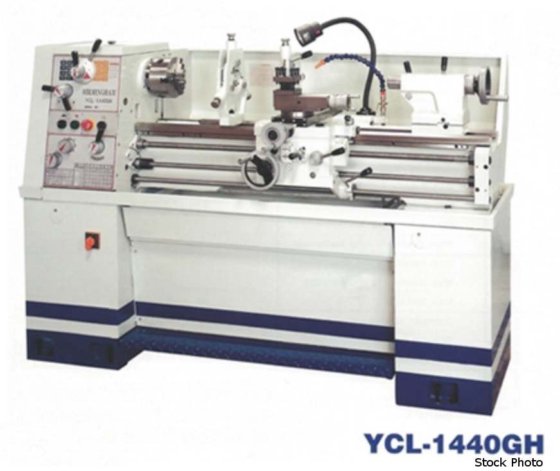

(NEW) BIRMINGHAM MDL YCL-1440GH HIGH SPEED
PRECISION GAP BED LATHE
SPECIFICATIONS:
SWING OVER BED,,,,,,,,,,,,,,,,,, 14"
DISTANCE BETWEEN CENTERS,,,,,,,, 40"
MAX SWING OVER CROSS SLIDE,,,,,, 8-5/8"
EFFECTIVE LENGTH IN GAP,,,,,,,,, 6-1/4"
WIDTH OF BED,,,,,,,,,,,,,,,,,,,, 8-1/8"
HEADSTOCK:
SPINDLE NOSE (SPINDLE MOUNT),,,, D1-4
DIAMETER OF SPINDLE THRU HOLE,,, 1-1/2"
SPINDLE TAPER (WITH SLEEVE),,,,, MT #5
NUMBER OF SPINDLE SPEEDS,,,,,,,, 16
RANGE OF SPINDLE SPEED,,,,,,,,,, 45 - 1800
FEEDS & THREADS:
CROSS FEEDS,,,,,,,,,,,,,,,,,,,,, 0.0003 -
0.0294"/REV
(40 KINDS)
METRIC PITCH THREADS,,,,,,,,,,,, 0.45 - 7.5
(22 KINDS)
INCH THREADS,,,,,,,,,,,,,,,,,,,, 4 - 112 TPI
(40 KINDS)
RANGE OF LONGITUDINAL FEEDS,,,,, 0.0012
- 0.0294 IN/REV
DIAMETER OF LEADSCREW,,,,,,,,,,, 7/8"
PITCH THREADS OF LEADSCREW,,,,,, 8 TPI
CARRIAGE:
MAX TRAVEL OF CROSS SLIDE,,,,,,, 7"
MAX TRAVEL OF COMPOUND SLIDE,,,, 4"
MAX TOOL SIZE,,,,,,,,,,,,,,,,,,, 5/8" X 5/8"
TAILSTOCK:
TRAVEL OF TAILSTOCK QUILL,,,,,,, 4-3/4"
DIAMETER OF TAILSTOCK QUILL,,,,, 2-3/4"
TAPER HOLE OF TAILSTOCK QUILL,,, MT NO. 3
MOTORS:
MAIN MOTOR POWER,,,,,,,,,,,,,,,, 3 HP
COOLANT PUMP MOTOR POWER,,,,,,,, 1/8 HP
STANDARD ACCESSORIES:
FOLLOW REST COOLANT SYSTEM
12" FACE PLATE HALOGEN WORK LIGHT
3-3/4" STEADY REST REMOVEABLE GAP
6" 3-JAW CHUCK 4-WAY TOOL POST
8" 4-JAW CHUCK THREAD CHASING DIAL
OPERATIONS/PARTS MANUAL FRONT PULL OUT TRAY
CENTERS AND REDUCING SLEEVE
TOOL KIT WITH TOOLS AND LEVELING PADS
FULL LENGTH FOOT BRAKE
FULL LENGTH SPLASH GUARD
ALL INCH/MM DUAL DIALS
SPINDLE JOG BUTTON CONTROL
FEATURES:
3 HP MAIN MOTOR
NO CHANGE GEARS REQUIRED
D1-4 SPINDLE WITH 1-1/2" BORE
HARDENED AND GROUND BEDWAYS
16 SPEEDS ALL GEARED HEADSTOCK FROM
45 TO 1800 PPM
BED MADE OF FINE GRAIN HIGH TENSILE CAST
IRON
JOG BUTTON FOR EASY ENGAGEMENT AND INCHING
SPINDLE
OPEN TYPE CHIP PAN EASILY TO REMOVE CHIPS
BUILT IN FULL SIZE SPLASH GUARD AND LAMP
FOR WORKER'S CONVENIENCE
