Top Seller
BIRMINGHAM LATHES in Dodge Center,
Location:
Dodge Center, MN
Price:
$11,700 USD
Manufacturer:
Birmingham lathes
Model:
YCL1660
Spindle Nose:
D1-6

Specifications

Condition:
new
Stock number:
060906
Travel:
4-13/16"
Gap removed:
25-3/16"
Actual swing:
16-1/8"
Spindle hole:
2-9/32"
Spindle nose:
D1-6
Length of gap:
9-1/2"
Rated capacity:
16" SWING X 60" CENTER
Spindle speeds:
25 - 2000 RPM
Subcategory:
Engine

Description

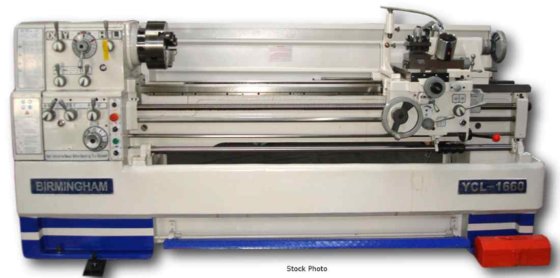

BIRMINGHAM (NEW) MDL YCL-1660 ENGINE LATHE
RATED CAPACITY,,,,,,,, 16" SWING X 60" CENTER
ACTUAL SWING,,,,,,,,,, 16-1/8"
MAX SWING OVER CARRIAGE,, 8-13/16"
GAP REMOVED,,,,,,,,,,,,,, 25-3/16"
LENGTH OF GAP,,,,,,,,,,,, 9-1/2"
SPINDLE HOLE,,,,,,,,,,,,, 2-9/32"
SPINDLE NOSE,,,,,,,,,,,,, D1-6
SPINDLE SPEEDS,,,,,,,,,,, 25 - 2000 RPM
12 STEPS
INCH METRIC THREADING
MT 4 TAIL STOCK
TRAVEL,,,,,,,,,,,,,,,,,,, 4-13/16"
EQUIPPED WITH:
7-1/2 HP 3 PHASE
STANDARD EQUIPMENT INCLUDES:
3 JAW CHUCK
4 JAW CHUCK
FACE PLATE
STEADY REST WITH ROLLER JAWS
FOLLOW REST
GAP
4-WAY TOOL POST
THREADING CHASING DIAL
(2) DEAD CENTERS
REDUCING SLEEVE
FULL LENGTH SPLASH GUARD
ONE PIECE CAST IRON BASE
FOOT BRAKE
HALOGEN WORK LIGHT
COOLANT SYSTEM
LEVELING PADS
4 POSITION AUTO KICK-OUT LONGITUDINAL
CARRIAGE STOP
TOOL BOX
