JET LATHES in Dodge Center,
Location:
Dodge Center, MN
Price:
$5,299 USD
Manufacturer:
JET Tools lathes
Model:
321360A BDB-1340A
Spindle Bore:
1-3/8"

Specifications

Condition:
new
Stock number:
060474
Main motor:
2 HP, 1 PH, 230 V
Spindle bore:
1-3/8"
Width of bed:
7-3/8"
Length in gap:
8"
Max tool size:
5/8" X 5/8"
Spindle mount:
D1-4
Swing over bed:
13"
Carriage travel:
35"
Swing through gap:
18-3/4"
Cross slide travel:
6-5/16"
Follow rest capacity:
2-3/4"
Range of cross feeds:
0.0012-0.0345 IPR
Steady rest capacity:
2-5/8"
Compound slide travel:
2-11/16"
Range of inch threads:
4 - 112 TPI
Subcategory:
Engine

Description

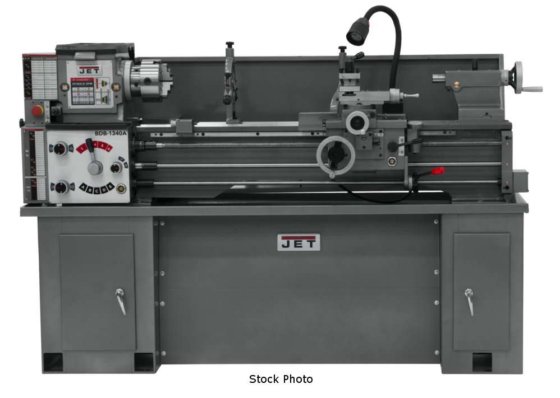

JET (NEW) MODEL 321360A BDB-1340A BELT DRIVE
BENCH LATHE
SWING OVER BED ............ 13"
SWING OVER CROSS SLIDE .... 7-25/32"
SWING THROUGH GAP ......... 18-3/4"
LENGTH IN GAP ............. 8"
DISTANCE BETWEEN CENTERS .. 40"
SPINDLE BORE .............. 1-3/8"
SPINDLE MOUNT ............. D1-4
SPINDLE TAPER (W/SLEEVE) .. MT-5 (MT-3)
NUMBER OF SPINDLE SPEEDS .. 12
RANGE OF SPINDLE SPEEDS ... 60 - 1,240 RPM
NUMBER OF LONGITUDINAL
AND CROSS FEED RATES .... 40
RANGE OF LONGITUDINAL FEEDS 0.0018-0.0374 IPR
RANGE OF CROSS FEEDS ...... 0.0012-0.0345 IPR
NUMBER ON INCH THREADS .... 40
RANGE OF INCH THREADS ..... 4 - 112 TPI
NUMBER OF METRIC THREADS .. 27
RANGE OF METRIC THREADS ... 0.2 - 6 mm
MAX TOOL SIZE ............. 5/8" X 5/8"
COMPOUND SLIDE TRAVEL ..... 2-11/16"
CROSS SLIDE TRAVEL ........ 6-5/16"
CARRIAGE TRAVEL ........... 35"
TAILSTOCK SPINDLE TRAVEL .. 3-3/4"
TAPER IN TAILSTOCK SPINDLE MT-3
STEADY REST CAPACITY ...... 2-5/8"
FOLLOW REST CAPACITY ...... 2-3/4"
WIDTH OF BED .............. 7-3/8"
MAIN MOTOR ................ 2 HP, 1 PH, 230 V
EQUIPPED WITH:
COOLANT TRAY
TOLERANCE TEST CERTIFICATE
6" 3-JAW DIRECT MOUNT SCROLL CHUCK WITH TOP
REVERSING JAWS
8" 4-JAW INDEPENDENT CHUCK
12" FACEPLATE
4-WAY TOOL POST
STEADY REST AND FOLLOW REST
METRIC CHANGE GEAR
CENTERS W/HEADSTOCK CENTER SLEEVE
THREADING DIAL
MICRO CARRIAGE BED STOP
TOOL BOX WITH TOOLS
