JET 321439 GH-1640ZX in Dodge Center, MN, USA

Top Seller
JET 321439 GH-1640ZX in Dodge
Location:
Dodge Center, MN, USA
Price:
No price
Manufacturer:
JET Tools lathes
Model:
321439 GH-1640ZX

Specifications

Condition:
new
Stock number:
061050
Subcategory:
Engine

Description

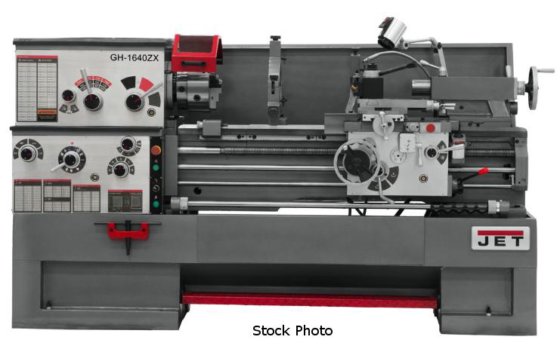

JET (NEW) MODEL 321439 GH-1640ZX LARGE
SPINDLE BORE LATHE WITH COLLET CLOSER
SWING OVER BED,,,,,,,,,,,,,,,, 16"
SWING THROUGH GAP,,,,,,,,,,,,, 25-7/8"
LENGTH OF GAP,,,,,,,,,,,,,,,,, 12-1/4"
DISTANCE BETWEEN CENTERS,,,,,, 40"
HOLE THROUGH SPINDLE,,,,,,,,,, 3-1/8"
SPINDLE MOUNT,,,,,,,,,,,,,,,,, D1-8
NUMBER OF SPINDLE SPEEDS,,,,,, 12
RANGE OF SPINDLE SPEEDS,,,,,,, 20 - 1,800 RPM
NUMBER OF LONGITUDINAL AND
CROSS FEEDS,,,,,,,,,,,,,,,,, 122
NUMBER OF INCH THREADS,,,,,,,, 61
NUMBER OF METRIC THREADS,,,,,, 24
MAX TOOL SIZE,,,,,,,,,,,,,,,,, 1 X 1
MAIN MOTOR,,,,,,,,,,,,,,,,,,,, 7-1/2 HP 3 PH
230/460 V
STANDARD EQUIPMENT:
10" 3 JAW CHUCK W/TOP REVERSING JAWS
12" 4 JAW CHUCK
12" FACE PLATE
4 WAY TOOL POST
LARGE CAPACITY STEADY REST
FOLLOW REST
FULLY INTEGRATED COOLANT SYSTEM
FULL LENGTH SPLASH GUARD AND COOLANT RETURN
LARGE EASY TO USE FOOT BRAKE
ARTICULATING HALOGEN WORKLAMP
CENTRALLY LOCATED CONTROLS WITH JOG BUTTON
THREADING DIAL
MOUNTING PADS AND LEVELERS
SPINDLE SPEED (MT-7 TO MT-5)
