Top Seller
JET LATHES in Dodge Center,
Location:
Dodge Center, MN
Price:
$19,799 USD
Manufacturer:
JET Tools lathes
Model:
321463 GH-1860ZX
Distance between Centers:
60"

Specifications

Condition:
new
Stock number:
061400
Options:
PRICE ON REQUEST
Main motor:
7-1/2 HP 3 PH
Cross feeds:
122
Max tool size:
1 X 1
Spindle mount:
D1-8
Swing over bed:
18"
Swing through gap:
27-1/4"
Max carriage travel:
55
Hole through spindle:
3-1/8"
Range of cross feeds:
0.0006-0.0365
Range of inch threads:
1-5/8 - 72
Max cross slide travel:
9
Number of inch threads:
61
Swing over cross slide:
11"
Range of metric threads:
0.05 - 20
Range of spindle speeds:
25 - 1,800 RPM
Distance between centers:
60"
Number of metric threads:
24
Number of spindle speeds:
12
Tailstock spindle travel:
5
Subcategory:
Engine

Description

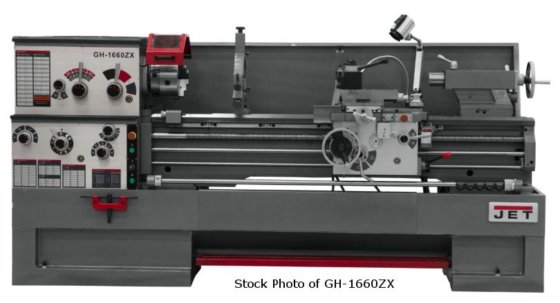

JET (NEW) MODEL 321463 GH-1860ZX LARGE
SPINDLE BORE LATHE WITH TAPER ATTACHMENT
INSTALLED
SWING OVER BED,,,,,,,,,,,,,,,, 18"
SWING OVER CROSS SLIDE,,,,,,,, 11"
SWING THROUGH GAP,,,,,,,,,,,,, 27-1/4"
DISTANCE BETWEEN CENTERS,,,,,, 60"
HOLE THROUGH SPINDLE,,,,,,,,,, 3-1/8"
SPINDLE MOUNT,,,,,,,,,,,,,,,,, D1-8
SPINDLE TAPER WITH SLEEVE,,,,, MT-7 (MT-5)
NUMBER OF SPINDLE SPEEDS,,,,,, 12
RANGE OF SPINDLE SPEEDS,,,,,,, 25 - 1,800 RPM
NUMBER OF LONGITUDINAL AND
CROSS FEEDS,,,,,,,,,,,,,,,,, 122
RANGE OF LONGITUDINAL FEEDS,,, 0.0015-0.0913
RANGE OF CROSS FEEDS,,,,,,,,,, 0.0006-0.0365
NUMBER OF INCH THREADS,,,,,,,, 61
RANGE OF INCH THREADS,,,,,,,,, 1-5/8 - 72
NUMBER OF METRIC THREADS,,,,,, 24
RANGE OF METRIC THREADS,,,,,,, 0.05 - 20
MAX TOOL SIZE,,,,,,,,,,,,,,,,, 1 X 1
MAX COMPOUND SLIDE TRAVEL,,,,, 5-1/8
MAX CROSS SLIDE TRAVEL,,,,,,,, 9
MAX CARRIAGE TRAVEL,,,,,,,,,,, 55
TAILSTOCK SPINDLE TRAVEL,,,,,, 5
TAPER IN TAILSTOCK SPINDLE,,,, MT-4
MAIN MOTOR,,,,,,,,,,,,,,,,,,,, 7-1/2 HP 3 PH
230/460 V
STANDARD EQUIPMENT:
10" 3 JAW CHUCK W/TOP REVERSING JAWS
12" 4 JAW CHUCK
12" FACE PLATE (16" MODELS)
16" FACE PLATE (18" MODELS)
4 WAY TOOL POST
FOLLOW REST
LARGE CAPACITY STEADY REST
FULLY INTEGRATED COOLANT SYSTEM
COOLANT SYSTEM W/FULL LENGTH SPLASH GUARD
THREE-BEARING SPINDLE SUPPORT
INDUCTION HARDENED BEDWAYS
LARGE EASY TO USE FOOT BRAKE
ARTICULATING HALOGEN WORK LAMP
CENTRALLY LOCATED CONTROLS WITH JOG BUTTON
THREADING DIAL
MOUNTING PADS AND LEVELERS
SPINDLE SLEEVE (MT-7 TO MT-5)
DEAD CENTER
LIVE CENTER
TOOL BOX AND ADJUSTING TOOLS
* UNIQUELY DESIGNED EXCLUSIVELY BY JET
* UNIVERSAL GEARBOX ALLOWS INCH, METRIC,
DIAMETRAL AND MODULE PITCH
* CARRIAGE FEATURES ONE-SHOT LUBRICATION
AND TURCITE-B ON BED SLIDING SURFACES
* T-SLOTTED COMPOUND SLIDE FEATURING A FOUR-
WAY TOOL POST
* TOLERANCE TEST CERTIFICATE INCLUDED
* ISO 9001 CERTIFIED MANUFACTURER
* 3-1/8" BORE SPINDLE IS SUPPORTED BY TWO
TAPERED AND ONE BALL BEARING
* CHROME MOLYBDENUM HEADSTOCK GEARS ARE
HARDENED, GROUND AND SHAVED
* ONE-PIECE CAST IRON BASE ABSORBS VIBRATION
ALLOWING HEAVIER CUTS
* HIGH QUALITY ANSI CLASS 50 WEAR-RESISTANT
CAST IRON BED WAYS ARE HARDENED AND GROUND
* REMOVEABLE GAP ALLOWS UP TO 23-5/8" DIA.
WORK ON 16", 27-1/2" ON 18"
* FIVE POSTION AUTOMATIC CARRIAGE STOP
INCREASES PRODUCTIVITY
* ATTRACTIVE CHROME CONTROL LEVERS, DIALS
AND KNOBS COMPLETE THIS IMPRESSIVE PACKAGE
OPTIONS .................... PRICE ON REQUEST
ROYAL MT5 LIVE CENTER ............ POR
12" 3 JAW BISON CHUCK ............ POR
ALORIS QUICK CHANGE TOOLPOST ..... POR
JACOBS BALL BEARING DRILL CHUCK .. POR
