Top Seller
JET LATHES in Dodge Center,
Location:
Dodge Center, MN
Price:
$17,299 USD
Manufacturer:
JET Tools lathes
Model:
321467 GH-1440ZX
Distance between Centers:
40"

Specifications

Condition:
new
Stock number:
061311
Main motor:
7-1/2 HP 3 PH
Cross feeds:
122
Width of bed:
13-3/8"
Length of gap:
12-1/4"
Max tool size:
1 X 1
Spindle mount:
D1-8
Spindle taper:
MT 7
Swing over bed:
14"
Swing through gap:
25-5/8"
Max carriage travel:
35"
Follow rest capacity:
1-1/2" - 3-1/2
Hole through spindle:
3-1/8"
Steady rest capacity:
3/8" TO 7"
Range of inch threads:
1-5/8" T0 72"
Max cross slide travel:
9
Number of inch threads:
61
Swing over cross slide:
7-5/8"
Range of metric threads:
0.05 TO 20
Range of spindle speeds:
42 - 1,800 RPM
Distance between centers:
40"
Number of metric threads:
24
Number of spindle speeds:
12
Tailstock spindle travel:
5"
Subcategory:
Engine

Description

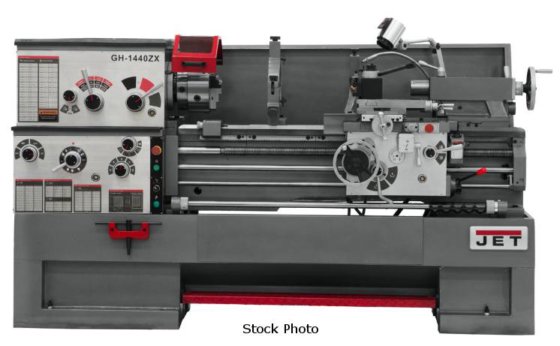

JET (NEW) MODEL 321467 GH-1440ZX LARGE
SPINDLE BORE LATHE WITH TAPER ATTACHMENT
INSTALLED
SWING OVER BED,,,,,,,,,,,,,,,, 14"
SWING OVER CROSS SLIDE,,,,,,,, 7-5/8"
SWING THROUGH GAP,,,,,,,,,,,,, 25-5/8"
LENGTH OF GAP,,,,,,,,,,,,,,,,, 12-1/4"
DISTANCE BETWEEN CENTERS,,,,,, 40"
HOLE THROUGH SPINDLE,,,,,,,,,, 3-1/8"
SPINDLE MOUNT,,,,,,,,,,,,,,,,, D1-8
SPINDLE TAPER,,,,,,,,,,,,,,,,, MT 7
SPINDLE TAPER WITH SLEEVES,,,, MT 5
NUMBER OF SPINDLE SPEEDS,,,,,, 12
RANGE OF SPINDLE SPEEDS,,,,,,, 42 - 1,800 RPM
NUMBER OF LONGITUDINAL AND
CROSS FEEDS,,,,,,,,,,,,,,,,, 122
NUMBER OF INCH THREADS,,,,,,,, 61
RANGE OF INCH THREADS,,,,,,,,, 1-5/8" T0 72"
NUMBER OF METRIC THREADS,,,,,, 24
RANGE OF METRIC THREADS,,,,,,, 0.05 TO 20
MAX TOOL SIZE,,,,,,,,,,,,,,,,, 1 X 1
MAX COMPOUND SLIDE TRAVEL,,,,, 5-1/8"
MAX CROSS SLIDE TRAVEL,,,,,,,, 9
MAX CARRIAGE TRAVEL,,,,,,,,,,, 35"
TAILSTOCK SPINDLE TRAVEL,,,,,, 5"
FOLLOW REST CAPACITY,,,,,,,,,, 1-1/2" - 3-1/2
STEADY REST CAPACITY,,,,,,,,,, 3/8" TO 7"
WIDTH OF BED,,,,,,,,,,,,,,,,,, 13-3/8"
MAIN MOTOR,,,,,,,,,,,,,,,,,,,, 7-1/2 HP 3 PH
230/460 V
STANDARD EQUIPMENT:
10" 3 JAW CHUCK W/TOP REVERSING JAWS
12" 4 JAW CHUCK
12" FACE PLATE
4 WAY TOOL POST
LARGE CAPACITY STEADY REST
FOLLOW REST
FULLY INTEGRATED COOLANT SYSTEM
FULL LENGTH SPLASH GUARD AND COOLANT RETURN
LARGE EASY TO USE FOOT BRAKE
ARTICULATING HALOGEN WORKLAMP
CENTRALLY LOCATED CONTROLS WITH JOG BUTTON
THREADING DIAL
MOUNTING PADS AND LEVELERS
SPINDLE SPEED (MT-7 TO MT-5)
DEAD CENTER
LIVE CENTER
TOOL BOX AND ADJUSTING TOOLS
FEATURES:
UNIQUELY DESIGNED BY JET
ISO 9001 CERTIFIED MANUFACTURER
3-1/8" BORE SPINDLE IS SUPPORTED BY TWO
TAPERED ROLLER AND ONE BALL BEARINGS
CHROME MOLYBDENUM HEADSTOCK GEARS ARE
HARDENED, GROUND AND SHAVED
UNIVERSAL GEARBOX ALLOWS INCH, METRIC,
DIAMETRAL AND MODULE PITCH THREADS
NO CHANGE GEARS REQUIRED
CARRIAGE FEATURES ONE SHOT LUBRICATION AND
TURCITE B ON BED SLIDING SURFACES
ONE PIECE CAST IRON BASE ABSORBS VIBRATION
ALLOWING HEAVIER CUTS
HIGH QUALITY ANSI CLASS 50 WEAR-RESISTANT
CAST IRON BED WAYS ARE HARDENED AND
GROUND
REMOVEABLE GAP ALLOWS UP TO 23-5/8" DIA
WORK
FIVE POSITION AUTOMATIC CARRIAGE STOP
INCREASES PRODUCTIVITY
ATTRACTIVE CHROME CONTROL LEVERS, DIALS,
AND KNOBS COMPLET THIS PACKAGE
TOLERANCE TEST CERTIFICATE INCLUDED
