Top Seller
JET LATHES in Dodge Center,
Location:
Dodge Center, MN
Price:
$19,299 USD
Manufacturer:
JET Tools lathes
Model:
321477 GH-1660ZX
Distance between Centers:
60"

Specifications

Condition:
new
Stock number:
060996
Main motor:
7-1/2 HP 3 PH
Cross feeds:
122
Length of gap:
12-1/4"
Max tool size:
1 X 1
Spindle mount:
D1-8
Swing over bed:
16"
Swing through gap:
25-7/8"
Hole through spindle:
3-1/8"
Number of inch threads:
61
Range of spindle speeds:
20 - 1,800 RPM
Distance between centers:
60"
Number of metric threads:
24
Number of spindle speeds:
12
Subcategory:
Engine

Description

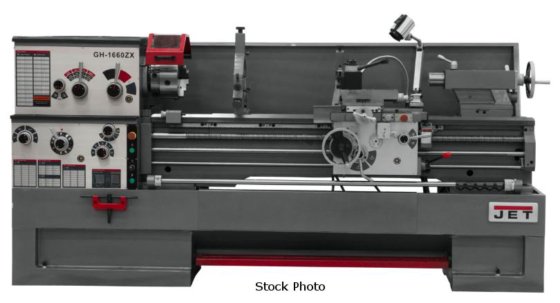

JET (NEW) MODEL 321477 GH-1660ZX LARGE
SPINDLE BORE LATHE WITH TAPER ATTACHMENT
INSTALLED
SWING OVER BED,,,,,,,,,,,,,,,, 16"
SWING THROUGH GAP,,,,,,,,,,,,, 25-7/8"
LENGTH OF GAP,,,,,,,,,,,,,,,,, 12-1/4"
DISTANCE BETWEEN CENTERS,,,,,, 60"
HOLE THROUGH SPINDLE,,,,,,,,,, 3-1/8"
SPINDLE MOUNT,,,,,,,,,,,,,,,,, D1-8
NUMBER OF SPINDLE SPEEDS,,,,,, 12
RANGE OF SPINDLE SPEEDS,,,,,,, 20 - 1,800 RPM
NUMBER OF LONGITUDINAL AND
CROSS FEEDS,,,,,,,,,,,,,,,,, 122
NUMBER OF INCH THREADS,,,,,,,, 61
NUMBER OF METRIC THREADS,,,,,, 24
MAX TOOL SIZE,,,,,,,,,,,,,,,,, 1 X 1
MAIN MOTOR,,,,,,,,,,,,,,,,,,,, 7-1/2 HP 3 PH
230/460 V
STANDARD EQUIPMENT:
10" 3 JAW CHUCK W/TOP REVERSING JAWS
12" 4 JAW CHUCK
12" FACE PLATE
4 WAY TOOL POST
LARGE CAPACITY STEADY REST
FOLLOW REST
FULLY INTEGRATED COOLANT SYSTEM
FULL LENGTH SPLASH GUARD AND COOLANT RETURN
LARGE EASY TO USE FOOT BRAKE
ARTICULATING HALOGEN WORKLAMP
CENTRALLY LOCATED CONTROLS WITH JOG BUTTON
THREADING DIAL
MOUNTING PADS AND LEVELERS
SPINDLE SPEED (MT-7 TO MT-5)
DEAD CENTER
LIVE CENTER
TOOL BOX AND ADJUSTING TOOLS
FEATURES:
UNIQUELY DESIGNED BY JET
3-1/8" BORE SPINDLE IS SUPPORTED BY TWO
TAPERED ROLLER AND ONE BALL BEARINGS
CHROME MOLYBDENUM HEADSTOCK GEARS ARE
HARDENED, GROUND AND SHAVED
UNIVERSAL GEARBOX ALLOWS INCH, METRIC,
DIAMETRAL AND MODULE PITCH THREADS
NO CHANGE GEARS REQUIRED
CARRIAGE FEATURES ONE SHOT LUBRICATION AND
TURCITE B ON BED SLIDING SURFACES
ONE PIECE CAST IRON BASE ABSORBS VIBRATION
ALLOWING HEAVIER CUTS
HIGH QUALITY ANSI CLASS 50 WEAR-RESISTANT
CAST IRON BED WAYS ARE HARDENED AND
GROUND
