JET 321486 GH-1880ZX in Dodge Center, MN, USA

Top Seller
JET 321486 GH-1880ZX in Dodge
Location:
Dodge Center, MN, USA
Price:
No price
Manufacturer:
JET Tools lathes
Model:
321486 GH-1880ZX

Specifications

Condition:
new
Stock number:
060919
Subcategory:
Engine

Description

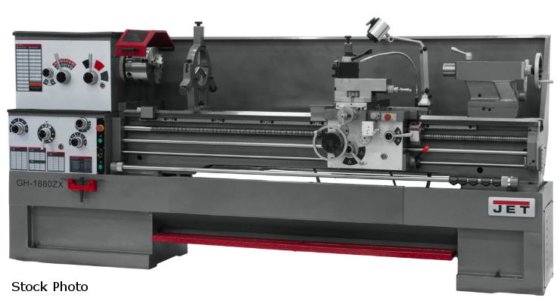

JET (NEW) MODEL 321486 GH-1880ZX LARGE
SPINDLE BORE LATHE
SWING OVER BED,,,,,,,,,,,,,,,, 18"
SWING OVER CROSS SLIDE,,,,,,,, 11"
SWING THROUGH GAP,,,,,,,,,,,,, 27-1/4"
DISTANCE BETWEEN CENTERS,,,,,, 80"
HOLE THROUGH SPINDLE,,,,,,,,,, 3-1/8"
SPINDLE MOUNT,,,,,,,,,,,,,,,,, D1-8
SPINDLE TAPER WITH SLEEVE,,,,, MT-7 (MT-5)
NUMBER OF SPINDLE SPEEDS,,,,,, 12
RANGE OF SPINDLE SPEEDS,,,,,,, 25 - 1,800 RPM
NUMBER OF LONGITUDINAL AND
CROSS FEEDS,,,,,,,,,,,,,,,,, 122
RANGE OF LONGITUDINAL FEEDS,,, 0.0015-0.0913
RANGE OF CROSS FEEDS,,,,,,,,,, 0.0006-0.0365
NUMBER OF INCH THREADS,,,,,,,, 61
RANGE OF INCH THREADS,,,,,,,,, 1-5/8 - 72
NUMBER OF METRIC THREADS,,,,,, 24
RANGE OF METRIC THREADS,,,,,,, 0.05 - 20
MAX TOOL SIZE,,,,,,,,,,,,,,,,, 1 X 1
MAX COMPOUND SLIDE TRAVEL,,,,, 5-1/8
MAX CROSS SLIDE TRAVEL,,,,,,,, 9
MAX CARRIAGE TRAVEL,,,,,,,,,,, 55
TAILSTOCK SPINDLE TRAVEL,,,,,, 5
TAPER IN TAILSTOCK SPINDLE,,,, MT-4
MAIN MOTOR,,,,,,,,,,,,,,,,,,,, 7-1/2 HP 3 PH
230/460 V
STANDARD EQUIPMENT:
