Top Seller
JET LATHES in Dodge Center,
Location:
Dodge Center, MN
Price:
$9,799 USD
Manufacturer:
JET
Model:
321820 GH-1340W-3

Specifications

Condition:
new
Stock number:
060969
Main motor:
3 HP 3 PHASE
Max tool size:
5/8 X 5/8
Spindle mount:
D1-4
Swing over bed:
13"
And cross feeds:
40
Swing through gap:
19"
Max carriage travel:
37-1/2
Hole through spindle:
1-1/2"
Range of cross feeds:
0003-.0103
Range of longi feeds:
0012-.0294
Range of inch threads:
4 - 112 T.P.I.
Subcategory:
Engine

Description

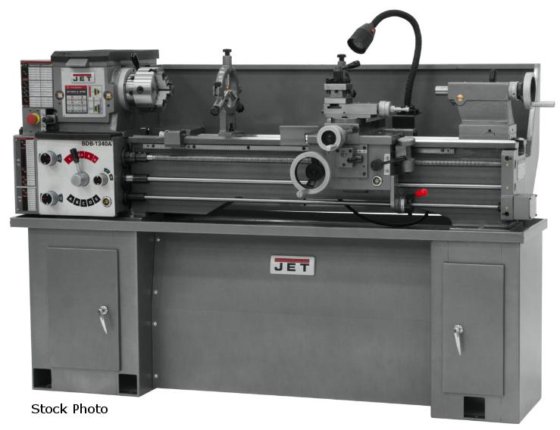

JET (NEW) MODEL 321820 GH-1340W-3 GEARED HEAD
LATHE WITH CABINET STAND
SWING OVER BED,,,,,,,,,,,,, 13"
SWING OVER CROSS SLIDE,,,,, 7-1/2"
SWING THROUGH GAP,,,,,,,,,, 19"
DISTANCE BETWEEN CENTERS,,, 40"
HOLE THROUGH SPINDLE,,,,,,, 1-1/2"
SPINDLE MOUNT,,,,,,,,,,,,,, D1-4
SPINDLE TAPER W/SLEEVE,,,,, MT 5
NUMBER OF SPINDLE SPEEDS,,, 12
RANGE OF SPINDLE SPEEDS,,,, 40 - 1,800 RPM
NUMBER OF LONGITUDINAL
AND CROSS FEEDS,,,,,,,,,, 40
RANGE OF LONGI FEEDS,,,,,,, .0012-.0294
RANGE OF CROSS FEEDS,,,,,,, .0003-.0103
NUMBER ON INCH THREADS,,,,, 40
RANGE OF INCH THREADS,,,,,, 4 - 112 T.P.I.
NUMBER OF METRIC THREADS,,, 22
RANGE OF METRIC THREADS,,,, .45 - 7.5 mm
MAX TOOL SIZE,,,,,,,,,,,,,, 5/8 X 5/8
MAX COMPOUND SLIDE TRAVEL,, 3-1/2
MAX CROSS SLIDE TRAVEL,,,,, 6-3/8
MAX CARRIAGE TRAVEL,,,,,,,, 37-1/2
TAILSTOCK SPINDLE TRAVEL,,, 4-3/4"
TAPER IN TAILSTOCK SPINDLE, MT 3
MAIN MOTOR,,,,,,,,,,,,,,,,, 3 HP 3 PHASE
230/460 VOLT
EQUIPPED WITH:
HEAVY DUTY STAND
6" 3 JAW DIRECT MOUNT CHUCK W/ TOP 8" 4 JAW CHUCK
12" FACE PLATE
4 WAY TOOL POST
STEADY REST AND FOLLOW REST
MICRO BED STOP
FRONT REMOVEABLE CHIP TRAY
SPINDLE JOG BUTTON
FOOT BRAKE
COOLANT SYSTEM WITH SPLASH GUARD
METRIC CHANGE GEAR
HALOGEN WORK LAMP
CENTERS AND HEADSTOCK CENTER SLEEVE
THREADING DIAL
TOOL BOX AND TOOLS
