Top Seller
SUMMIT LATHES in Dodge Center,
Location:
Dodge Center, MN
Price:
$9,990 USD
Manufacturer:
Summit lathes
Model:
14" X 40
Spindle Nose:
D1-4

Specifications

Condition:
new
Stock number:
060656
Leadscrew:
7/8" DIAMETER 7/8" TPI
Cross feeds:
40 .0003-.0090 IPR
Coolant pump:
1/8 HP
Spindle nose:
D1-4
Width of bed:
10-1/4"
Length of gap:
9-1/4"
Spindle motor:
4 HP
Metric threads:
24 0.45-75 TPI
Swing over bed:
14"
Swing over gap:
20"
Compound travel:
3-1/4"
Feeds & threads:
NUMBER RANGE
Taper of center:
MT#3
Degrees of taper:
+/- 8 DEG.
Threads per inch:
40 4 - 112 TPI
Options available:
PRICE ON REQUEST
Cross slide travel:
6-1/2"
Spindle speeds (12):
40-1800 RPM
Hole through spindle:
1-1/2"
Spindle barrel travel:
5"
Swing over cross slide:
8-1/4"
Spindle barrel diameter:
1-3/4"
Subcategory:
Engine

Description

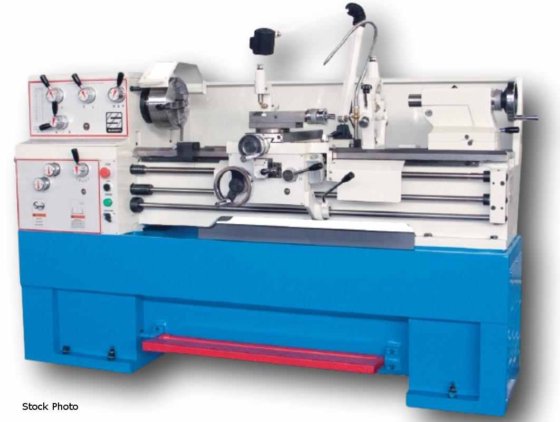

SUMMIT (NEW) 14" X 40" ENGINE LATHE
SWING OVER BED .................. 14"
SWING OVER GAP .................. 20"
LENGTH OF GAP ................... 9-1/4"
SWING OVER CROSS SLIDE .......... 8-1/4"
HEADSTOCK:
HOLE THROUGH SPINDLE .......... 1-1/2"
SPINDLE SPEEDS (12) ........... 40-1800 RPM
SPINDLE NOSE .................. D1-4
FEEDS & THREADS: NUMBER RANGE
THREADS PER INCH ...... 40 4 - 112 TPI
METRIC THREADS ........ 24 0.45-75 TPI
LONGITUDINAL FEEDS .... 40 .0011-.0271 IPR
CROSS FEEDS ........... 40 .0003-.0090 IPR
LEADSCREW ..... 7/8" DIAMETER 7/8" TPI
CARRIAGE & APRON:
CROSS SLIDE TRAVEL ............ 6-1/2"
COMPOUND TRAVEL ............... 3-1/4"
TAPER ATTACHMENT:
DEGREES OF TAPER .............. +/- 8 DEG.
LENGTH OF TAPER PER SETTING ... 13"
BED:
WIDTH OF BED .................. 10-1/4"
BED WAY HARDNESS (ROCKWELL C) . 42-48
TAILSTOCK:
SPINDLE BARREL TRAVEL ......... 5"
SPINDLE BARREL DIAMETER ....... 1-3/4"
TAPER OF CENTER ............... MT#3
SPINDLE MOTOR ................... 4 HP
ELECTRICS - 3 PHASE, 60 CYCLE ... 220/440 V
COOLANT PUMP .................... 1/8 HP
STANDARD FEATURES:
HEAVY RIBBED CAST BED
HARDENED AND PRECISION GROUND WAYS
FORCED LUBE TO HEADSTOCK, CARRIAGE, BEDWAYS
CROSSFEED & THREADING SAFETY INTERLOCK
FULL LENGTH SPLASH GUARD
INCH-METRIC THREADING
REMOVABLE GAP
ACCESSORIES INCLUDED:
THREAD DIAL
STEADY REST
FOLLOW REST
COOLANT SYSTEM
CARRIAGE STOP
TAPER ATTACHMENT
8" 3-JAW CHUCK WITH 2 PIECE JAWS
8" 4-JAW CHUCK
4-WAY TOOL POST
OPTIONS AVAILABLE .......... PRICE ON REQUEST
QUICK CHANGE TOOL POST W/HOLDERS ... POR
DIGITAL READOUT .................... POR
