Location:
Dodge Center, MN, USA
Price:
No price
Manufacturer:
Summit lathes
Model:
16-40

Specifications

Condition:
new
Stock number:
061017
Subcategory:
Engine

Description

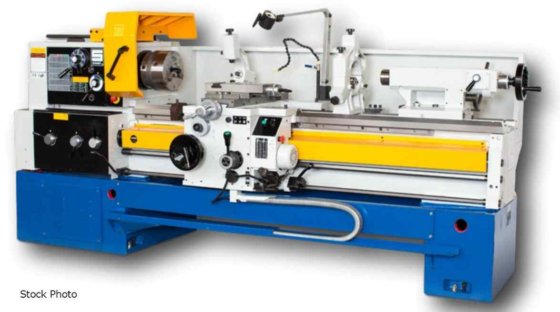

SUMMIT (NEW) MODEL 16-40 16" ENGINE LATHE
SWING OVER BED ............. 16"
SWING OVER CROSS SLIDE ..... 9-3/8"
SWING OVER GAP ............. 25-1/8"
LENGTH OF GAP .............. 15"
IN FRONT OF FACEPLATE .... 8-3/8"
HEADSTOCK
SPINDLE SPEEDS - 21 ........ 20-2000 RPM
HOLE THROUGH SPINDLE ....... 3"
QUICK CHANGE GEARBOX NUMBER RANGE
THREADS PER INCH ......... 64 1/4 - 60
METRIC THREADS ........... 64 .5 - 120
LONGITUINDAL FEEDS ....... 120 .00185-.4447
CROSS FEEDS .............. 120 .0007-.2224
METRIC FEEDS ............. 120 .039 - 12
MAIN MOTOR ............... 10 HP
COOLANT PUMP ............. 1/4 HP
STANDARD EQUIPMENT
HEAVY RIBBED CAST BED AND BASE
HARDENED AND PRECISION GROUND WAYS
FEED REVERSING AT THE APRON
FORCED LUBE TO HEADSTOCK, CARRIAGE, BEDWAYS
D1-8 CAMLOCK SPINDLE NOSE
CROSSFEED AND THREADING SAFETY INTERLOCK
INCH-METRIC THREADING
REMOVEABLE GAP
PULLOUT TYPE CHIP PAN
DUAL HEADSTOCK & APRON SPINDLE CTRL LEVERS
FULL LENGTH SPLASH GUARD
