SUMMIT LATHES in Dodge Center,
Location:
Dodge Center, MN
Manufacturer:
Summit lathes
Model:
16-60

Specifications

Condition:
new
Stock number:
060449
Main motor:
10 HP
Cross feeds:
120 .0007-.2224
Coolant pump:
1/4 HP
Metric feeds:
120 .039 - 12
Length of gap:
15"
Metric threads:
64 .5 - 120
Swing over bed:
16"
Swing over gap:
25-1/8"
Threads per inch:
64 1/4 - 60
Options available:
PRICE ON REQUEST
Longituindal feeds:
120 .00185-.4447
Spindle speeds - 21:
20-2000 RPM
Hole through spindle:
3"
Swing over cross slide:
9-3/8"
Subcategory:
Engine

Description

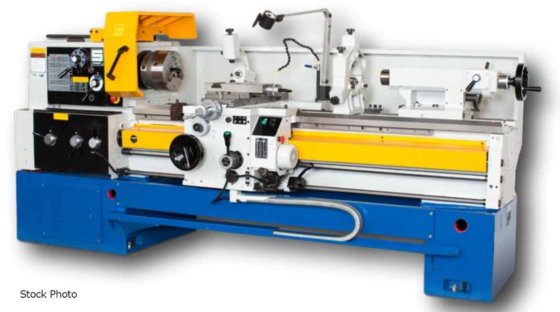

SUMMIT (NEW) MODEL 16-60 ENGINE LATHE
SWING OVER BED ............. 16"
SWING OVER CROSS SLIDE ..... 9-3/8"
SWING OVER GAP ............. 25-1/8"
LENGTH OF GAP .............. 15"
IN FRONT OF FACEPLATE .... 8-3/8"
HEADSTOCK
SPINDLE SPEEDS - 21 ........ 20-2000 RPM
HOLE THROUGH SPINDLE ....... 3"
QUICK CHANGE GEARBOX NUMBER RANGE
THREADS PER INCH ......... 64 1/4 - 60
METRIC THREADS ........... 64 .5 - 120
LONGITUINDAL FEEDS ....... 120 .00185-.4447
CROSS FEEDS .............. 120 .0007-.2224
METRIC FEEDS ............. 120 .039 - 12
MAIN MOTOR ............... 10 HP
COOLANT PUMP ............. 1/4 HP
STANDARD EQUIPMENT
HEAVY RIBBED CAST BED AND BASE
HARDENED AND PRECISION GROUND WAYS
FEED REVERSING AT THE APRON
FORCED LUBE TO HEADSTOCK, CARRIAGE, BEDWAYS
D1-8 CAMLOCK SPINDLE NOSE
CROSSFEED AND THREADING SAFETY INTERLOCK
INCH-METRIC THREADING
REMOVEABLE GAP
PULLOUT TYPE CHIP PAN
DUAL HEADSTOCK & APRON SPINDLE CTRL LEVERS
FULL LENGTH SPLASH GUARD
4 WAY RAPID TRAVERSE
DIAMETRAL AND MODULE THREAD CAPABILITY
ACCESSORIES:
THREAD DIAL COOLANT SYSTEM
STEADY REST CARRIAGE STOP
FOLLOW REST TAPER ATTACHMENT
10" 3 JAW CHUCK WORK LIGHT
SERVICE WRENCHES
OPTIONS AVAILABLE .......... PRICE ON REQUEST
UPGRADED CHUCK ................... POR
DIGITAL READOUT .................. POR
HYDRAULIC TRACER ................. POR
QUICK CHANGE TOOL POST W/HOLDERS . POR
