Location:
Dodge Center, MN, USA
Price:
No price
Manufacturer:
Summit lathes
Model:
SUPER 20-4-80

Specifications

Condition:
new
Stock number:
060802
Subcategory:
Engine

Description

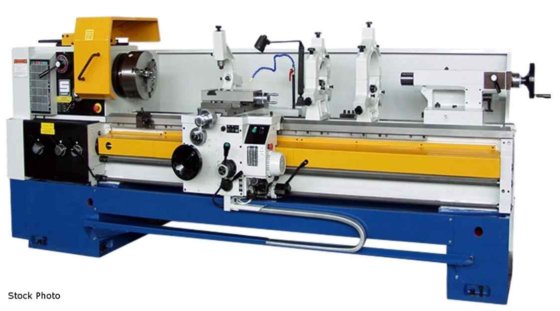

SUMMIT (NEW) MODEL SUPER 20-4-80 ENGINE LATHE
CAPACITIES:
SWING OVER BED ................. 20 1/4"
SWING OVER GAP ................. 27 5/8"
SWING OVER CROSS SLIDE ......... 11 7/8"
LENGTH OF GAP .................. 15"
GAP IN FRONT OF FACEPLATE ...... 8 3/8"
HEADSTOCK:
SPINDLE SPEEDS
NUMBER ....................... 15
RANGE RPM .................... 11.5-1400
HOLE THROUGH SPINDLE ........... 4 1/8"
SPINDLE NOSE ................... D1-8 CAMLOCK
HEADSTOCK CENTER ............... #6 MT
NUMBER OF BEARINGS ON SPINDLE .. 3
QUICK CHANGE GEARBOX: NUMBER RANGE
THREADS PER INCH 64 .25 - 60
METRIC THREADS 64 .50 - 120
MODULE THREADS 64 .125 - 30
DIAMETRAL PITCH 64 1 - 240
LONGITUDINAL FEEDS 124 .00145-.44474
CROSS FEEDS 124 .0007-.22237
LEADSCREW DIAMETER ........... 2"
LEADSCREW RANGE ............... 2 TPI
CARRIAGE AND APRON:
CROSS SLIDE TRAVEL ............. 11 3/8"
COMPOUND REST TRAVEL ........... 5 3/8"
