SUMMIT LATHES in Dodge Center,
Location:
Dodge Center, MN
Price:
$32,990 USD
Manufacturer:
SUMMIT
Model:
20-4-80
Spindle Nose:
D1-8

Specifications

Condition:
new
Stock number:
060633
Options:
PRICE ON REQUEST
Bed width:
13"
Spindle nose:
D1-8
Length of gap:
4-1/4"
Spindle motor:
10 HP
Swing over bed:
20"
Swing over gap:
30"
Compound travel:
5"
Degree of taper:
+/- 10 DEGREES
Taper of center:
#5 MT
Coolant pump motor:
1/8 HP
Cross slide travel:
11-1/2"
Hole through spindle:
4"
Spindle speeds - range:
32-1500 RPM
Swing over cross slide:
13-1/4"
Subcategory:
Engine

Description

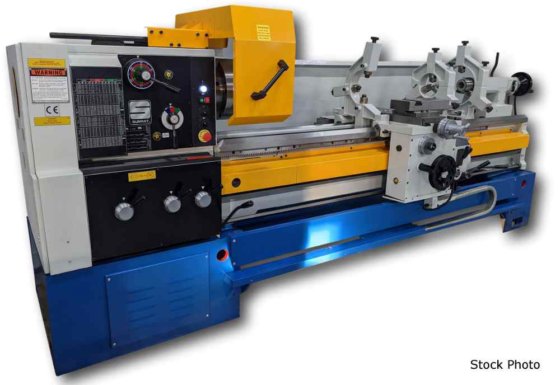

SUMMIT (NEW) MODEL 20-4-80 ENGINE LATHE
CAPACITIES
SWING OVER BED ............. 20"
SWING OVER CROSS SLIDE ..... 13-1/4"
SWING OVER GAP ............. 30"
LENGTH OF GAP .............. 4-1/4"
HEADSTOCK
HOLE THROUGH SPINDLE ....... 4"
SPINDLE SPEEDS - NUMBER .... 12
SPINDLE SPEEDS - RANGE ..... 32-1500 RPM
SPINDLE NOSE ............... D1-8
QUICK CHANGE GEARBOX NUMBER RANGE
THREADS PER INCH 45 2 - 72 TPI
METRIC THREADS 42 0.2 - 14
LONGITUDINAL FEEDS 32 0.002-0.04 IPR
CROSS FEEDS 32 0.001-0.02 IPR
LEADSCREW 1-3/8" DIA 4 TPI
CARRIAGE AND APRON
CROSS SLIDE TRAVEL ......... 11-1/2"
COMPOUND TRAVEL ............ 5"
TAPER ATTACHMENT
DEGREE OF TAPER ............ +/- 10 DEGREES
LENGTH OF TAPER PER SETTING 16"
BED WIDTH .................... 13"
BED WAY HARDNESS (ROCKWELL C). 44 - 50"
TAILSTOCK
TRAVEL OF SPINDLE BARREL ... 6"
DIAMETER OF SPINDLE BARREL . 3"
TAPER OF CENTER ............ #5 MT
SPINDLE MOTOR ................ 10 HP
COOLANT PUMP MOTOR ........... 1/8 HP
STANDARD FEATURES
HEAVY RIBBED CAST BED AND BASE
INCH/METRIC THREADING
HARDENED & PRECISION GROUND WAYS
REMOVABLE GAP
FORCE LUBE TO HEADSTOCK, CARRIAGE & BEDWAYS
DIAMETRAL AND MODULE THREAD CAPACITY
FEED REVERSING AT THE APRON
FULL LENGTH CAST BASE
4-WAY RAPID TRAVERSE
FULL LENGTH SPLASH GUARD
ELECTRIC BRAKE
INCLUDED ACCESSORIES
STEADY REST
FOLLOW REST
THREAD DIAL
COOLANT SYSTEM
TAPER ATTACHMENT
3 JAW CHUCK
4 JAW CHUCK
CARRIAGE STOP
SERVICE WRENCHES
OPTIONS .................... PRICE ON REQUEST
12" STEEL BODY, 3-JAW PRECISION
CHUCK W/TOP 2-PC REVERSIBLE JAWS ... POR
QUICK CHANGE TOOL POST W/HOLDERS ... POR
DIGITAL READOUT .................... POR
HYDRAULIC TRACER ................... POR
