SUMMIT LATHES in Dodge Center,
Location:
Dodge Center, MN
Price:
$52,990 USD
Manufacturer:
Summit lathes
Model:
SUPER 24-4-120
Spindle Nose:
D1-8 CAMLOCK

Specifications

Condition:
new
Stock number:
060752
Motor:
15 HP
Number:
21
Options:
PRICE ON REQUEST
Range rpm:
20-1250
Depth of bed:
16-7/8"
Spindle nose:
D1-8 CAMLOCK
Width of bed:
15-3/4"
Length of gap:
15"
Swing over bed:
25"
Swing over gap:
33"
Leadscrew range:
2 TPI
Tailstock taper:
#5 MT
Headstock center:
#6 MT
Cross slide travel:
12 1/8"
Leadscrew diameter:
2"
Compound rest travel:
5 3/8"
Hole through spindle:
4 1/8"
Quick change gearbox:
NUMBER RANGE
Swing over cross slide:
17"
Travel of spindle barrel:
9-1/2"
Gap in front of faceplate:
8 3/8"
Diameter of spindle barrel:
3-1/2"
Subcategory:
Engine

Description

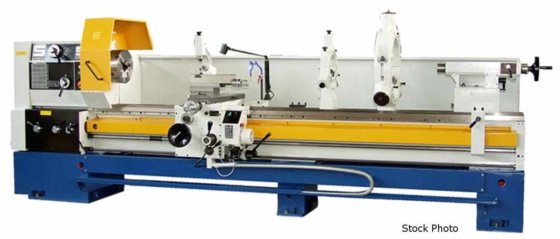

SUMMIT (NEW) MODEL SUPER 24-4-120 ENGINE
LATHE
CAPACITIES:
SWING OVER BED ................. 25"
SWING OVER GAP ................. 33"
SWING OVER CROSS SLIDE ......... 17"
LENGTH OF GAP .................. 15"
GAP IN FRONT OF FACEPLATE ...... 8 3/8"
HEADSTOCK:
SPINDLE SPEEDS
NUMBER ....................... 21
RANGE RPM .................... 20-1250
HOLE THROUGH SPINDLE ........... 4 1/8"
SPINDLE NOSE ................... D1-8 CAMLOCK
HEADSTOCK CENTER ............... #6 MT
NUMBER OF BEARINGS ON SPINDLE .. 3
QUICK CHANGE GEARBOX: NUMBER RANGE
THREADS PER INCH 64 .25 - 60
METRIC THREADS 64 .50 - 120
MODULE THREADS 64 .125 - 30
DIAMETRAL PITCH 64 1 - 240
LONGITUDINAL FEEDS 124 .00145-.44474
CROSS FEEDS 124 .0007-.22237
LEADSCREW DIAMETER ........... 2"
LEADSCREW RANGE ............... 2 TPI
CARRIAGE AND APRON:
CROSS SLIDE TRAVEL ............. 12 1/8"
COMPOUND REST TRAVEL ........... 5 3/8"
WIDTH OF BED ................... 15-3/4"
DEPTH OF BED ................... 16-7/8"
TAILSTOCK TAPER ................ #5 MT
TRAVEL OF SPINDLE BARREL ....... 9-1/2"
DIAMETER OF SPINDLE BARREL ..... 3-1/2"
MOTOR .......................... 15 HP
STANDARD FEATURES:
HEAVY RIBBED CAST BED AND BASE
INCH/METRIC THREADING
HARDENED & PRECISION GROUND WIDE BEDWAYS
FORCE LUBRICATION TO HEADSTOCK, CARRIAGE
AND BEDWAYS
PULLOUT TYPE CHIP PAN
REMOVABLE GAP
CROSSFED AND THREADING SAFETY INTERLOCK
DIAMETRAL AND MODULE THREAD CAPACITY
FEED REVERSING AT THE APRON
SINGLE LEVER JOYSTICK CONTROL FOR FEEDS &
4-WAY RAPID TRAVERSE
DUAL HEADSTOCK & APRON SPINDLE CTRL LEVERS
FULL LENGTH SPLASH GUARD
TWO SPEED TAILSTOCK
INCLUDED ACCESSORIES:
STANDARD STEADY REST WITH ROLLERS
EXTRA CAPACITY STEADY REST WITH ROLLERS
FOLLOW REST
THREAD DIAL
COOLANT SYSTEM
TAPER ATTACHMENT
4-WAY RAPID TRAVERSE
12" 3 JAW CHUCK WITH 2-PIECE JAWS
CARRIAGE STOP
HALOGEN WORK LIGHT
SERVICE WRENCHES AND SPANNERS
REDUCING SLEEVE AND DEAD CENTERS
OPTIONS .................... PRICE ON REQUEST
12" STEEL BODY, 3-JAW PRECISION
CHUCK W/TOP 2-PC REVERSIBLE JAWS ... POR
QUICK CHANGE TOOL POST W/HOLDERS ... POR
DIGITAL READOUT .................... POR
HYDRAULIC TRACER ................... POR
