Top Seller
SUMMIT LATHES in Dodge Center,
Location:
Dodge Center, MN
Price:
$77,990 USD
Manufacturer:
SUMMIT
Model:
30-6-200 BIG HOLE
Spindle Nose:
D1-11

Specifications

Condition:
new
Stock number:
060758
Range:
13-800 RPM
Electrics:
220/440/3/60
Two speed:
1:1, 4:1
Coolant pump:
1/8 HP
Spindle nose:
D1-11
Width of bed:
18"
Spindle motor:
15 HP
Rapid traverse:
1/4 HP
Spindle speeds:
12
Swing over bed:
30"
Swing over gap:
39"
Compound travel:
9"
Taper of center:
#5 MT
Degrees of taper:
+/- 10 DEG.
Options available:
PRICE ON REQUEST
Cross slide travel:
15"
Hole through spindle:
9.1"
Swing over cross slide:
22"
Travel of spindle barrel:
9"
Diameter of spindle barrel:
3 3/4"
Subcategory:
Engine

Description

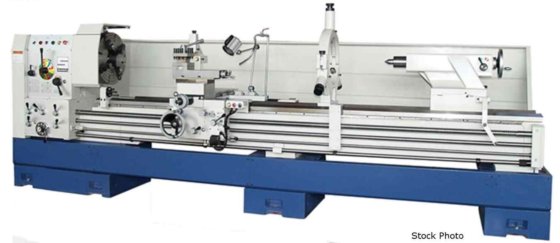

SUMMIT (NEW) 30-6-200 BIG HOLE ENGINE LATHE
SWING OVER BED ................. 30"
SWING OVER GAP ................. 39"
SWING OVER CROSS SLIDE ......... 22"
SPINDLE SPEEDS ................. 12
RANGE .......................... 13-800 RPM
HOLE THROUGH SPINDLE ........... 9.1"
SPINDLE NOSE ................... D1-11
CROSS SLIDE TRAVEL ............. 15"
COMPOUND TRAVEL ................ 9"
TRAVEL OF SPINDLE BARREL ....... 9"
DIAMETER OF SPINDLE BARREL ..... 3 3/4"
TAPER OF CENTER ................ #5 MT
TWO SPEED ...................... 1:1, 4:1
WIDTH OF BED ................... 18"
HARDNESS OF BED (ROCKWELL C) ... 42-50
DEGREES OF TAPER ............... +/- 10 DEG.
LENGTH OF TAPER PER SETTING .... 20"
SPINDLE MOTOR .................. 15 HP
RAPID TRAVERSE ................. 1/4 HP
COOLANT PUMP ................... 1/8 HP
ELECTRICS ...................... 220/440/3/60
STANDARD FEATURES:
QUICK-CHANGE GEAR BOX WILL CUT INCH,
METRIC, MODULE & DIAMETRAL PITCH
HARDENED & PRECISION GROUND WIDE BEDWAYS
SPINDLE BRAKE
REMOVABLE GAP
FEED REVERSING AT THE APRON
4-WAY RAPID TRAVERSE
6.1" OR 9.1" SPINDLE BORE
INCLUDED ACCESSORIES:
16" 3-JAW CHUCK WITH 6.1" THRU HOLE (D1-11)
20" 4-JAW CHUCK WITH 6" THRU HOLE (D1-11)
STEADY REST
TAPER ATTACHMENT
FRONT & REAR 4 JAW CHUCKS
FOLLOW REST
FULL LENGTH SPLASH GUARD
COOLANT SYSTEM
HALOGEN WORK LIGHT
OPTIONS AVAILABLE .......... PRICE ON REQUEST
3 AND 4 JAW CHUCKS .................... POR
REAR FLANGE TO MOUNT ADDITIONAL CHUCK . POR
2-AXIS DIGITAL READOUT INSTALLED ...... POR
QUICK-CHANGE TOOL POST ................ POR
