Top Seller
LEWCO MATERIAL HANDLING in Dodge
Location:
Dodge Center, MN
Price:
$12,100 USD
Manufacturer:
LEWCO
Model:
NS-CDLR35-36-12-240

Specifications

Condition:
new
Stock number:
071286
Drive:
D10-CENTER DR, BOTTOM
Motor:
M34-2 HP, 3 PHASE
Speed:
30'/MINUTE
Volts:
230/460 V
Length:
240" (2) 10' SECTIONS
Roller width:
36"
Roll diameter:
3.5"
Roller centers:
12"
Weight capacity:
14,675 LBS OVER 240"
Subcategory:
Material handling

Description

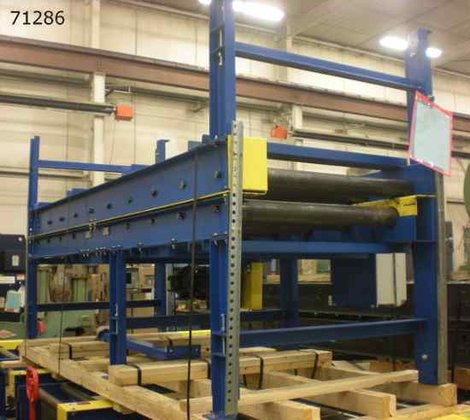

LEWCO (NEW) MODEL NS-CDLR35-36-12-240 CHAIN
DRIVEN ROLLER CONVEYOR
ROLL DIAMETER ......... 3.5"
ROLLER WIDTH .......... 36"
ROLLER CENTERS ........ 12"
LENGTH ................ 240" (2) 10' SECTIONS
WEIGHT CAPACITY ....... 14,675 LBS OVER 240"
SPEED ................. 30'/MINUTE
ELEVATION - BEGINNING . 31"
ELEVATION - ENDING .... 31"
DRIVE ................. D10-CENTER DR, BOTTOM
MOTOR ................. M34-2 HP, 3 PHASE
VOLTS ................. 230/460 V
ROLL BEARING - A80-PRECISION, GREASE PACKED,
1" HEX ANGLE
FRAME - 8" @ 11.5#
LEGS - 6" @ 8.2#
ROLLERS SET AT 3/8" HIGH
FRAME FINISH - PP94 POWDER COAT, SAFETY BLUE
PUSHBUTTON STATION W/MULTI-FUNCTION OPERATOR,
NON-ILLUMINATED, FORWARD/STOP/REVERSE,
NEMA 4X
REMOTE MOUNTED ON A PEDESTAL 10' AWAY
