FRYER MILLS in Dodge Center,
Location:
Dodge Center, MN
Price:
$14,500 USD
Manufacturer:
FRYER
Model:
MB11 CNC VERTICAL
Control:
3300M

Specifications

Condition:
used
Serial number:
11060
Stock number:
016044
Size:
10" X 50"
Height:
33"
Throat:
20"
X travel:
30"
Y travel:
20"
Z travel:
23"
Resolution:
0.0001"
Head swivel:
90 DEGREES
Speed (rpm):
60-4,200
Coolant flow:
2 GPM
Quill travel:
6"
Speed ranges:
2
Anilam control:
3300M
Quill diameter:
4.125"
Rapid traverse:
200 IPM
T-slots - width:
0.625"
Coolant capacity:
12 GALLONS
T-slots - number:
3
Cutting feed rate:
1-200 IPM
Axis thrust (peak):
4,000 LBS
Feed rate override:
0-120%
Power requirements:
208-240 VAC
Positioning accuracy:
+/- 0.0003"
Spindle nose to table:
27" - 4"
Position repeatability:
+/- 0.0002"
Horse power (peak/cont):
7.5 /5 HP
Air pressure requirements:
80 PSI
Subcategory:
Mills
Subcategory 2:
Cnc machining centers

Description

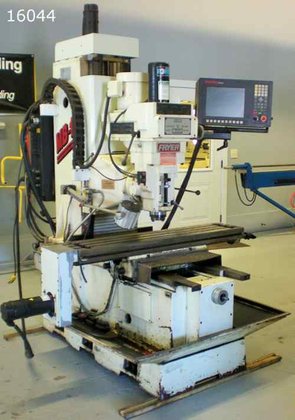

FRYER (USED) MODEL MB11 CNC VERTICAL MILLING
MACHINE
CAPACITY
X TRAVEL ...................... 30"
Y TRAVEL ...................... 20"
Z TRAVEL ...................... 23"
TABLE LOAD (EVEN DISTRIBUTION) 1,350 LBS
TABLE
SIZE .......................... 10" X 50"
T-SLOTS - NUMBER .............. 3
T-SLOTS - WIDTH ............... 0.625"
HEIGHT ........................ 33"
SPINDLE
HORSE POWER (PEAK/CONT) ....... 7.5 /5 HP
SPEED (RPM) ................... 60-4,200
SPEED RANGES .................. 2
TOOL TYPE/TAPER (CAT,NST OR BT) 40
QUILL DIAMETER ................ 4.125"
QUILL TRAVEL .................. 6"
SPINDLE NOSE TO TABLE ......... 27" - 4"
THROAT ........................ 20"
HEAD SWIVEL ................... 90 DEGREES
PERFORMANCE
POSITIONING ACCURACY .......... +/- 0.0003"
POSITION REPEATABILITY ........ +/- 0.0002"
RESOLUTION .................... 0.0001"
RAPID TRAVERSE ................ 200 IPM
CUTTING FEED RATE ............. 1-200 IPM
FEED RATE OVERRIDE ............ 0-120%
AXIS THRUST (PEAK) ............ 4,000 LBS
AIR PRESSURE REQUIREMENTS ....... 80 PSI
COOLANT CAPACITY ................ 12 GALLONS
COOLANT FLOW .................... 2 GPM
POWER REQUIREMENTS .............. 208-240 VAC
............................... 3 PH,30 AMP
ANILAM CONTROL ................ 3300M
