Top Seller
KENT MILLS in Dodge Center,
Location:
Dodge Center, MN
Price:
$30,500 USD
Model:
KTM-4VKF-MILPR3
Spindle Taper:
R-8 (NMTB-30 OR

Specifications

Condition:
new
Stock number:
061166
Chip tray:
$ 350.00
Ram travel:
22"
Table size:
50" X 10"
Knee travel:
15.5"
Quill travel:
5" (4" W/MILLPWR-3
Table travel:
33" (30" W/CNC CONTROL)
Saddle travel:
16" (15" W/CNC CONTROL)
Spindle motor:
3 HP (INVERTER-DUTY)
Spindle taper:
R-8 (NMTB-30 OR
4" riser block:
$ 400.00
6" riser block:
$ 450.00
8" riser block:
$ 550.00
Quill diameter:
3.375"
Spindle speeds:
60-550-4500 RPM
Table to floor:
34.5" - 49.5"
(built in base):
$ 350.00
(external tank):
$ 400.00
3-d edge finder:
$ 250.00
Nmtb-30 spindle:
$ 500.00
Price fob factory:
$ 21,995.00
Start up training:
$ 2,000.00
Quick change spindle:
$ 1,200.00
On/off and m-functions:
$ 850.00
Table instead of 10x50:
$ 500.00
Dro installation charge:
$ 150.00
Knee (z-axis) power feed:
$ 500.00
Subcategory:
Mills
Subcategory 2:
Cnc machining centers

Description

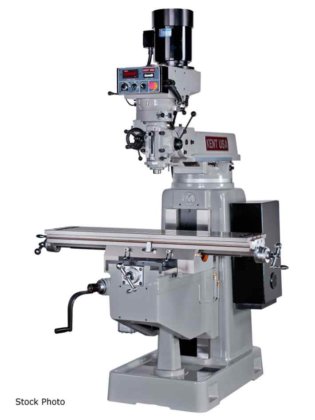

(NEW) KENT MDL KTM-4VKF-MILLPWR-3
MILLING MACHINE
TABLE SIZE,,,,,,,,,,, 50" X 10"
TABLE TRAVEL,,,,,,,,, 33" (30" W/CNC CONTROL)
SADDLE TRAVEL,,,,,,,, 16" (15" W/CNC CONTROL)
KNEE TRAVEL,,,,,,,,,, 15.5"
RAM TRAVEL,,,,,,,,,,, 22"
QUILL TRAVEL,,,,,,,,, 5" (4" W/MILLPWR-3
CNC CONTROL)
QUILL DIAMETER,,,,,,, 3.375"
SPINDLE MOTOR,,,,,,,, 3 HP (INVERTER-DUTY)
SPINDLE TAPER,,,,,,,, R-8 (NMTB-30 OR
QUICK CHANGE SPINDLE
OPTIONAL)
SPINDLE SPEEDS,,,,,,, 60-550-4500 RPM
(60-6000 ON HS HEAD
OPTIONAL)
TABLE TO FLOOR,,,,,,, 34.5" - 49.5"
SPINDLE TO TABLE,,,,, 2.75" - 18"
MAXIMUM WORKLOAD,,,,, 850 LBS (CENTERED)
POWER REQUIREMENTS:
220 VOLT 3 PHASE OR 1 PHASE FOR MACHINE 10A
OPTIONAL 440 VOLT REQUIRES 3 PHASE, 7.5A
110 VOLT DEDICATED FOR CNC CONTROL, 20A
OUTSTANDING FEATURES:
3 HP AC-FREQ DRIVE HEAD WITH DIGITAL RPM
DISPLAY AND ANALOG LOAD METER
60-599-4500 SPINDLE RPM (HI/LOW GEAR)
AUTOMATIC CENTRALIZED LUBRICATION
SYSTEM WITH METERED CHECK VALVES
SINGLE PHASE OR 3 PHASE POWER WITHOUT
THE NEED FOR A PHASE CONVERTOR
HARDENED AND GROUND (HRC-52) TABLE SURFACE
AND ALL SLIDE WAYS
SOLID BOX WAYS ON SADDLE AND COLUMN
EASY CONVERSATIONAL PROGAMMING, DRO-MODE
ALLOWS FOR FULL MANUAL OPERATIONS
ENGRAVING FEATURE AND DXF FILE IMPORT
CAPABILITY BUILT-IN, 3.5" FLOPPY DRIVE
AND 10" FLAT PANEL COLOR LCD DISPLAY
MILLPWR IS MANUFACTURED IN THE UNITED STATES
AND IS BACKED BY A (1) ONE YEAR WARRANTY
SHIPPING DIMENSONS:
6' X 6' SKID, 3600 LBS
PRICE FOB FACTORY,,,,,,,,,,,,,,$ 21,995.00
OPTIONAL EQUIPMENT NOT INCLUDED IN PRICE
QUICK CHANGE TOOLING PACKAGE,,,$ 1,450.00
QUICK CHANGE SPINDLE,,,,,,,,,,,$ 1,200.00
NMTB-30 SPINDLE,,,,,,,,,,,,,,,,$ 500.00
AIR POWER DRAWBAR
(MAXI-TORQUE MADE IN USA),,,,,$ 600.00
CHIP TRAY,,,,,,,,,,,,,,,,,,,,,,$ 350.00
FLOOD COOLANT SYSTEM
(BUILT IN BASE),,,,,,,,,,,,,,,$ 350.00
FLOOR COOLANT SYSTEM
(EXTERNAL TANK),,,,,,,,,,,,,,,$ 400.00
4" RISER BLOCK,,,,,,,,,,,,,,,,,$ 400.00
6" RISER BLOCK,,,,,,,,,,,,,,,,,$ 450.00
8" RISER BLOCK,,,,,,,,,,,,,,,,,$ 550.00
KNEE (Z-AXIS) POWER FEED,,,,,,,$ 500.00
HIGH-SPEED (HS) 6000 RPM
SPINDLE (SINGLE GEAR) OPTION,,$ 500.00
XL VERSION WITH 10X54 SIZE
TABLE INSTEAD OF 10X50,,,,,,,,$ 500.00
440 VOLT POWER INSTEAD OF 220V,$ 200.00
DRO INSTALLATION CHARGE,,,,,,,,$ 150.00
CNC CONTROL OPTIONS:
3-D EDGE FINDER,,,,,,,,,,,,,,,,$ 250.00
KNEE LINEAR ENCODER FEEDBACK
FOR COUPLED Z-AXIS POSITION,,,$ 650.00
AMI WITH PROGRAMMABLE SPINDLE
ON/OFF AND M-FUNCTIONS,,,,,,,,$ 850.00
EXPRESS TWO (2) DAY ON SITE
START UP TRAINING,,,,,,,,,,,,,$ 2,000.00
*NEED 1-2 WEEK LEAD TIME FOR
TRAVEL ARRANGEMENTS
