Top Seller
KENT MILLS in Dodge Center,
Location:
Dodge Center, MN
Price:
$16,200 USD
Model:
KTM-5VKF
Spindle Taper:
NMTB-40

Specifications

Condition:
new
Stock number:
060938
Boring:
8"
Milling:
2.5 IN3/MIN
Ram travel:
26.75"
Table size:
50" X 12"
Knee travel:
15.5"
Quill travel:
5.5"
Spindle motor:
5 HP INVERTER-DUTY
Spindle speed:
60-550-4500 RPM
Spindle taper:
NMTB-40
Quill diameter:
4.173"
Quill feed rate:
0.0017 / 0.0032 /
Drilling (power):
0.625"
Acu-rite 200s dro:
2-AXIS, 0.002" RESOLUTION
Drilling (manual):
1.25"
Maximum work load:
850 LBS CENTERED
Rustlink coolant (1 gallon, mixes 1:
30)
Subcategory:
Mills
Subcategory 2:
Cnc machining centers

Description

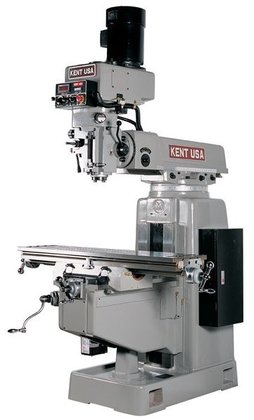

(NEW) KENT MDL KTM-5VKF MILLING MACHINE
TABLE SIZE ............... 50" X 12"
TABLE TRAVEL (X AXIS) .... 33"
SADDLE TRAVEL (Y AXIS) ... 16"
KNEE TRAVEL .............. 15.5"
RAM TRAVEL ............... 26.75"
QUILL TRAVEL ............. 5.5"
QUILL DIAMETER ........... 4.173"
QUILL FEED RATE .......... 0.0017 / 0.0032 /
0.0054" PER REV
SPINDLE MOTOR ............ 5 HP INVERTER-DUTY
SPINDLE TAPER ............ NMTB-40
SPINDLE SPEED ............ 60-550-4500 RPM
(2 RANGE, HI/LOW)
MAXIMUM WORK LOAD ........ 850 LBS CENTERED
CAPACITY - - - - - - - - - DIAMETER
DRILLING (MANUAL) ...... 1.25"
DRILLING (POWER) ....... 0.625"
BORING ................. 8"
MILLING ................ 2.5 IN3/MIN
POWER REQUIREMENTS:
220 VOLTS, 3 PHASE, 60 HZ, 20 AMP
(OPTIONAL 440 VOLT REQUIRES 10 AMP)
AC-FREQUENCY DRIVE CAN ACCEPT 220 VOLT,
1-PHASE POWER (25A) WITHOUT A PHASE
CONVERTER
* 5 HP SPINDLE MOTOR, VARIABLE SPEED MILLING
HEAD WITH AC-FREQ DRIVE HEAD, DIGITAL RPM
DISPLAY AND LOAD METER
* 12" X 50" HARDENED AND GROUND TABLE TOP
* T-SLOTS GROUND PARALLEL TO TABLE WAYS
* SADDLE AND KNEE WITH HARDENED AND GROUND
SQUARE (BOX) WAYS
* PRECISION GROUND LEADSCREWS WITH BACKLASH
COMPENSATING DOUBLE NUT
* PRECISION BORED AND GROUND MILLING HEAD,
WITH SUPER PRECISION ABEC-7 BEARINGS
* MEEHANITE CASTING, WITH BUILT-IN COOLANT
RESERVOIR IN MACHINE BASE
* CENTRALIZED ONE-SHOT LUBRICATION, WITH
METERED CHECK-VALVES
MACHINE OPTIONS - PRICES ON REQUEST
ACU-RITE 200S DRO: 2-AXIS, 0.002" RESOLUTION
DRO INSTALLATION CHARGE
TABLE (X-AXIS) POWER FEED
SADDLE (Y-AXIS) POWER FEED
KNEE (Z-AXIS) POWER FEED
AIR POWER DRAWBAR (MAXI-TORQUE, MADE IN USA)
CHIP PAN
FLOOD COOLANT SYSTEM (INTERNAL)
RUSTLINK COOLANT (1 GALLON, MIXES 1:30)
6" RISER BLOCK
8" RISER BLOCK
6" ANGLE-LOCK VISE
8" ANGLE-LOCK VISE
ROTARY TABLE (12", VERTICAL AND HORIZONTAL)
CLAMPING KIT (52 PC)
ER-40 COLLET CHUCK SYSTEM (15 PC)
UPGRADE TO 440 VOLT POWER
FOB CALIFORNIA
