Top Seller
KENT MILLS in Dodge Center,
Location:
Dodge Center, MN
Price:
$44,950 USD
Model:
TW-32QI
Spindle Taper:
NST-40 OR CAT-40

Specifications

Condition:
new
Stock number:
061167
Table size:
12" X 50"
Coolant pump:
1/4 HP
Quill travel:
5.5"
Spindle motor:
7.5 HP
Spindle taper:
NST-40 OR CAT-40
Quill diameter:
4.173"
Spindle speeds:
60-6000 RPM
Boring capacity:
8" DIAMETER
Milling capacity:
2.5 IN3/MIN
Spindle to table:
4" TO 24"
Options available:
PRICE ON REQUEST
Column (z-axis) .... 20:
18.5"
Saddle (y-axis) .... 20:
18.5"
Spindle center to column:
20"
T-slots (number x width):
3 X 5/8"
Drilling capacity - power:
0.625"
Drilling capacity - manual:
1.25"
Subcategory:
Mills
Subcategory 2:
Cnc machining centers

Description

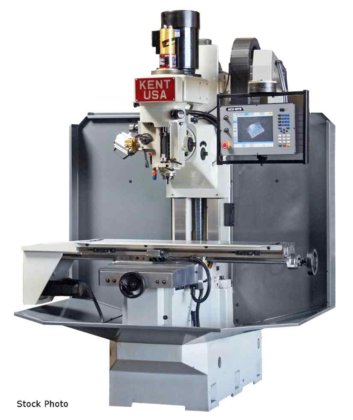

KENT (NEW) MODEL TW-32QI CNC BED MILL WITH
FAGOR 8055i CNC CONTROL
TABLE SIZE ...................... 12" X 50"
.................. TRAVEL .. TRAVEL W/CONTROL
TABLE (X-AXIS) ..... 34" ........ 32"
SADDLE (Y-AXIS) .... 20" ........ 18.5"
COLUMN (Z-AXIS) .... 20" ........ 18.5"
SPINDLE CENTER TO COLUMN ........ 20"
SPINDLE TO TABLE ................ 4" TO 24"
QUILL TRAVEL .................... 5.5"
QUILL DIAMETER .................. 4.173"
T-SLOTS (NUMBER X WIDTH) ........ 3 X 5/8"
COOLANT PUMP .................... 1/4 HP
MILLING HEAD:
SPINDLE MOTOR ................... 7.5 HP
SPINDLE TAPER ............ NST-40 OR CAT-40
SPINDLE SPEEDS .................. 60-6000 RPM
QUILL POWER FEED .... 0.0017"/0.0032"/0.0054"
DRILLING CAPACITY - MANUAL ...... 1.25"
DRILLING CAPACITY - POWER ....... 0.625"
BORING CAPACITY ................. 8" DIAMETER
MILLING CAPACITY ................ 2.5 IN3/MIN
MAXIMUM WORK LOAD - DISTRIBUTED . 1,000 LBS
POWER .... 220 VOLTS, 60 HZ, 3-PHASE, 30 AMPS
FEATURES
PROGRAMMABLE SPINDLE RPM CONTROL
SPINDLE RPM OVERRIDE KNOB ON CONTROL
60-6,000 RPM WITHOUT MANUAL GEAR CHANGES
FLUX-VECTOR INVERTER ON SPINDLE DRIVE
METAL HAND WHEELS ON X-AXIS AND Y-AXIS
AUTOMATIC CNC & MANUAL/DRO MODE CAPABILITY
SOLID BOXED WAYS ON COLUMN AND SADDLE WAYS
METAL TELESCOPING WAY COVER ON FRONT Y-AXIS
AUTO LUBE UNIT WITH METERED CHECK VALVES
FLOOD COOLANT WITH SPLASH GUARD & CHIP PAN
BUILT-IN COOLANT RESERVOIR IN MACHINE BASE
OVERHEAD ARM MOUNTING OF CNC CONTROL
BUILT-IN HALOGEN WORK LIGHT
DRO MODE FOR MANUAL MACHINING CAPABILITY
1.25" DIAMETER PRECISION GROUND BALL SCREWS
MANUAL QUILL CAPABILITY
OPTIONS AVAILABLE .......... PRICE ON REQUEST
REMOTE START/STOP SWITCH .............. POR
MANUAL PULSE GENERATOR HAND WHEEL ..... POR
QUILL SCALE FEEDBACK WITH LINKED
Z-AXIS COMPENSATION ................. POR
ROTARY TABLE & SERVO MOTOR FOR 4 AXIS . POR
2-DAY ON-SITE START-UP TRAINING ....... POR
6" ANGLE-LOCK VISE .................... POR
8" ANGLE-LOCK VISE .................... POR
12" ROTARY TABLE (VERTICAL & HORIZ) ... POR
440 VOLT POWER ........................ POR
