Top Seller
SUMMIT MILLS in Dodge Center,
Location:
Dodge Center, MN
Price:
$8,495 USD
Manufacturer:
SUMMIT
Model:
V-242B VERTICAL MILL
Weight:
850 LBS

Specifications

Condition:
new
Stock number:
061899
Table size:
9" X 42" X 3-1/8"
Side to side:
+/- 90
Front to back:
+/- 45
Head movement:
DEGREES
Spindle taper:
R-8
Spindle travel:
5"
Overarm rotation:
360 DEGREES
Overarm adjustment:
17-1/4"
Table feed - cross:
16"
Motor size (2 speeds):
2 HP
Spindle nose to table:
2.5" - 18.5"
Spindle speeds - range:
80-5440 RPM
Spindle speeds - number:
16
Maximum workpiece weight:
850 LBS
Table feed - longitudinal:
30"
Subcategory:
Mills
Subcategory 2:
Horizontal

Description

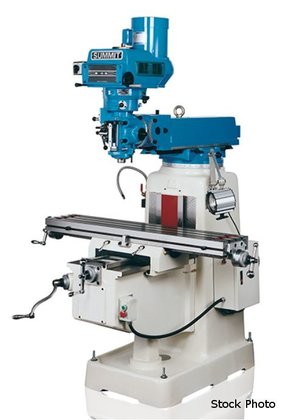

SUMMIT (NEW) MODEL V-242B VERTICAL MILL
MOTOR SIZE (2 SPEEDS) .......... 2 HP
SPINDLE SPEEDS - NUMBER ........ 16
SPINDLE SPEEDS - RANGE ......... 80-5440 RPM
SPINDLE TAPER .................. R-8
SPINDLE TRAVEL ................. 5"
SPINDLE FEED RANGE . 0.0015 .003 .006 IPR
HEAD MOVEMENT .................. DEGREES
SIDE TO SIDE ................. +/- 90
FRONT TO BACK ................ +/- 45
TABLE SIZE ................ 9" X 42" X 3-1/8"
TABLE FEED - LONGITUDINAL ...... 30"
TABLE FEED - CROSS ............. 16"
TABLE TRAVEL - KNEE VERTICAL ... 16.5"
MAXIMUM WORKPIECE WEIGHT ....... 850 LBS
OVERARM ROTATION ............... 360 DEGREES
OVERARM ADJUSTMENT ............. 17-1/4"
SPINDLE NOSE TO TABLE .......... 2.5" - 18.5"
STANDARD FEATURES:
COMPLETE ELECTRICS
MEEHANITE CASTINGS
TURCHITE GUIDEWAYS
R-8 COLLET SET
DRAW BAR
CLAMPING KIT
HALOGEN WORK LIGHT
WRENCH SETS
WAY COVERS
