JET MILLS in Dodge Center,
Location:
Dodge Center, MN
Price:
$14,999 USD
Manufacturer:
JET
Model:
690153 JTM-4VS
Capacity:
1/8" - 7/8"
Weight:
660 LBS

Specifications

Condition:
new
Stock number:
061884
Motor:
3 HP, 3 PH
Volts:
230/460 V
Prewired:
230 V
Table size:
9" X 49"
T-slot size:
5/8"
Spindle taper:
R-8
Travel of ram:
13-3/8"
Quill diameter:
3-3/8"
Spindle travel:
5"
T-slot centers:
2-1/2"
Travel of knee:
14-1/2"
Collet capacity:
1/8" - 7/8"
Number of t-slots:
3
Table cross travel:
12"
Range of spindle speeds:
60-4200 RPM
Number of spindle speeds:
VARIABLE
Longitudinal table travel:
34"
Work table weight capacity:
660 LBS
Subcategory:
Mills
Subcategory 2:
Horizontal

Description

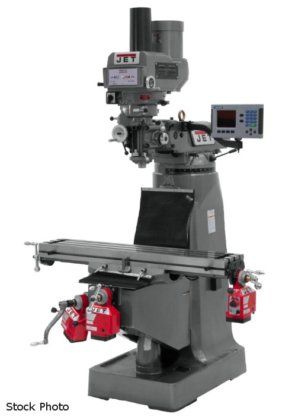

JET (NEW) MODEL 690153 JTM-4VS VARIABLE SPEED
VERTICAL MILL W/ACU-RITE 200S 3-AXIS DRO &
X & Y & Z POWERFEED & AIR DRAW BAR (QUILL)
TABLE SIZE ..................... 9" X 49"
SPINDLE TAPER .................. R-8
QUILL DIAMETER ................. 3-3/8"
NUMBER OF SPINDLE SPEEDS ....... VARIABLE
RANGE OF SPINDLE SPEEDS ........ 60-4200 RPM
QUILL DOWNFEED RATES ... .0015" .003" .006"
SPINDLE TRAVEL ................. 5"
HEAD MOVEMENT - RIGHT & LEFT ... 90 DEGREES
HEAD MOVEMENT - FORWARD & BACK . 45 DEGREES
MAX DISTANCE SPINDLE TO TABLE .. 17-1/2"
MAX DISTANCE SPINDLE TO COLUMN . 19"
MIN DISTANCE SPINDLE TO COLUMN . 4-1/2"
COLLET CAPACITY ................ 1/8" - 7/8"
LONGITUDINAL TABLE TRAVEL ...... 34"
TABLE CROSS TRAVEL ............. 12"
NUMBER OF T-SLOTS .............. 3
T-SLOT SIZE .................... 5/8"
T-SLOT CENTERS ................. 2-1/2"
WORK TABLE WEIGHT CAPACITY ..... 660 LBS
TRAVEL OF KNEE ................. 14-1/2"
TRAVEL OF RAM .................. 13-3/8"
MOTOR .......................... 3 HP, 3 PH
VOLTS .......................... 230/460 V
PREWIRED ....................... 230 V
FEATURES:
MEEHANITE CASTING
HEAVY-DUTY SPLINED MOTOR DRIVE
3-STAGE POWER DOWNFEED WITH AUTOMATIC STOP
ADJUSTABLE GIBS THROUGHOUT
PRECISION BORED AND HONED MILLING HEAD
LARGE DIAMETER QUILL IS CHROMED
HIGH PRECISION CLASS 7 SPINDLE BEARINGS
SPINDLE HEAD IS INTERNALLY COOLED
SATIN CHROME FINISHED DIALS
1-PIECE QUILL PINION AND SHAFT
HEAVY-DUTY SPINDLE BRAKE
CHROME-PLATED MOTOR SHAFT WITH LOWER
BEARING SUPPORT
INTERNAL COOLANT TANK BUILT INTO BASE
(COOLANT PUMP NOT INCLUDED)
TOLERANCE TEST SHEET INCLUDED
STANDARD EQUIPMENT:
LOCKS ON ALL MOVABLE SURFACES
PRECISION HARDENED & GROUND WAYS & TABLE
ONE-SHOT LUBRICATION SYSTEM
WAY COVERS
DRAW BAR
TOOL BOX WITH TOOLS
