Top Seller
ACCORD MILLS in Dodge Center,
Location:
Dodge Center, MN
Price:
$6,000 USD
Manufacturer:
Accord
Model:
BPV-3949C KNEE MILL

Specifications

Condition:
new
Stock number:
061801
T-slots:
5/8" X 3
Way type:
DOVETAIL
Ram swivel:
360 DEGREE
Ram travel:
12"
Table size:
9" X 49"
Cross travel:
13.25"
Quill travel:
5"
Spindle steps:
INFINITE
Spindle taper:
R-8
Quill diameter:
3-3/8"
Spindle speeds:
60-4300
With power feed:
33"
Head swivel lh/rh:
90 DEGREE
Spindle speed type:
VARIABLE SPEED
Longitudinal travel:
35.5"
Motor rating-2 speed:
3 HP 3 PHASE
Vertical knee travel:
16"
Subcategory:
Mills
Subcategory 2:
Horizontal

Description

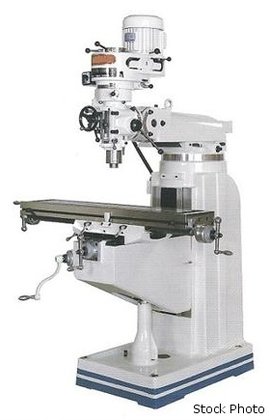

ACCORD (NEW) MODEL BPV-3949C VARIABLE SPEED
MILLING MACHINE
TABLE AND TRAVELS
TABLE SIZE .................. 9" X 49"
WAY TYPE .................... DOVETAIL
LONGITUDINAL TRAVEL ......... 35.5"
WITH POWER FEED ............. 33"
CROSS TRAVEL ................ 13.25"
VERTICAL KNEE TRAVEL ........ 16"
RAM TRAVEL .................. 12"
T-SLOTS ..................... 5/8" X 3
HEAD
QUILL FEEDS PER REV . 0.0015" - 0.003 - 0.006
QUILL TRAVEL ................ 5"
SPINDLE TAPER ............... R-8
QUILL DIAMETER .............. 3-3/8"
HEAD SWIVEL LH/RH ........... 90 DEGREE
HEAD TILT - FORWARD/BACK .... 45 DEGREE
RAM SWIVEL .................. 360 DEGREE
SPINDLE DRIVE 2 CONFIGURATIONS
MOTOR RATING-2 SPEED ........ 3 HP 3 PHASE
SPINDLE SPEED TYPE .......... VARIABLE SPEED
SPINDLE SPEEDS .............. 60-4300
SPINDLE STEPS ............... INFINITE
STANDARD FEATURES:
- HIGH QUALITY BUILT TAIWAN "MILL HEAD"
- PRECISION MANUFACTURED CHINA MADE MILL BODY
- BUILT TO ISO 9002 INDUSTRIAL STANDARDS
- LOW MAINTENANCE
- ULTRA PRECISION SPINDLE ASSEMBLY
- POWER DOWN FEED
- LEVER OPERATED SPINDLE BRAKE
- UNIVERSAL TURRET HEAD PROVIDES ANY CUTTING
ANGLE
- TABLE CAPACITY OF 600/800 LBS
- HARDENED AND PRECISION GROUND TABLE
- HAND SCRAPED WAYS
- DUAL LOCKING SADDLE LOCKS
- PRECISION LEADSCREWS WITH THRUST BEARINGS
- CHROME SATIN DIALS WITH EASY-TO-READ
GRADUATION
- BUILT-IN FLOOD COOLANT RESERVOIR
