SUMMIT MILLS in Dodge Center,
Location:
Dodge Center, MN
Price:
$15,995 USD
Manufacturer:
Summit
Model:
VS-550B
Weight:
990 LBS

Specifications

Condition:
new
Stock number:
061748
Table size:
11" X 52" X 3-1/8"
Spindle taper:
#40
Spindle travel:
5"
Overarm rotation:
360 DEG
Table cross feed:
16"
Speed range (rpm):
80-3500
Optional equipment:
PRICE ON REQUEST
Overarm adjustment:
24"
Spindle feed range:
0015 .003 .006 IPR
Motor size (2 speeds):
5 HP
Spindle nose to table:
2" - 22"
Table longitudinal feed:
32"
Maximum workpiece weight:
990 LBS
Number of spindle speeds:
INF. VARIABLE
Head movement side to side:
+/- 90 DEG
Tabel travel - knee vertical:
22"
Subcategory:
Mills
Subcategory 2:
Horizontal

Description

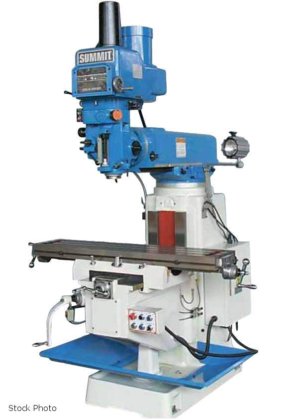

SUMMIT (NEW) MODEL VS-550B MILLING MACHINE
TABLE SIZE .............. 11" X 52" X 3-1/8"
TABLE LONGITUDINAL FEED ........... 32"
TABLE CROSS FEED .................. 16"
TABEL TRAVEL - KNEE VERTICAL ...... 22"
MAXIMUM WORKPIECE WEIGHT .......... 990 LBS
OVERARM ROTATION .................. 360 DEG
OVERARM ADJUSTMENT ................ 24"
SPINDLE NOSE TO TABLE ............. 2" - 22"
MOTOR SIZE (2 SPEEDS) ............. 5 HP
NUMBER OF SPINDLE SPEEDS ..... INF. VARIABLE
SPEED RANGE (RPM) ................. 80-3500
SPINDLE TAPER ..................... #40
SPINDLE TRAVEL .................... 5"
SPINDLE FEED RANGE ..... .0015 .003 .006 IPR
HEAD MOVEMENT SIDE TO SIDE ....... +/- 90 DEG
STANDARD FEATURES & ACCESSORIES:
HEAVY CAST IRON CONSTRUCTION
HEAVY BOX SADDLE
HUGE BOX WAYS ON KNEE
TURCITE-B LINED GUIDEWAYS
DOUBLE TABLE LOCKS
WIPERS ON SADDLE AND COLUMN
RACK AND PINION RAM MOVEMENT
BUILT IN COOLANT SYSTEM
ONE SHOT LUBRICATION
ADJUSTABLE CROSS SLIDE STOPS
FULL ELECTRICS WITH LOW VOLTAGE CONTROLS
OIL GUN
CLAMPING KIT
SCREWDRIVERS
ANCHOR BOLTS
POWER DRAW BAR
POWER KNEE
OPEN & BOX END WRENCH SETS
HEX KEY WRENCH SET
HALOGEN WORK LIGHT
OPTIONAL EQUIPMENT ........ PRICE ON REQUEST
DIGITAL READOUTS ............... POR
X-AXIS POWER FEED .............. POR
Y-AXIS POWER FEED .............. POR
